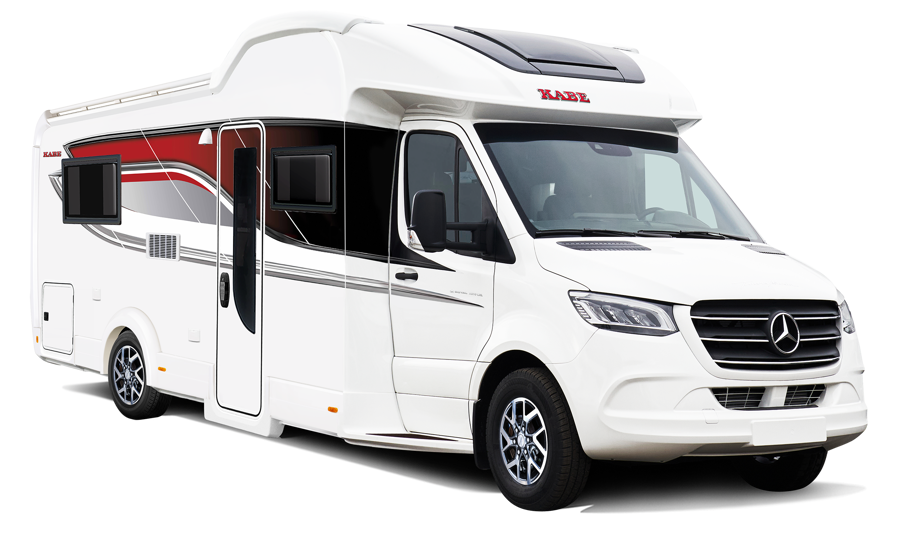

Royal x810 LXL

Royal x810 LXL

An inviting floor plan with a spacious L-shaped kitchen and two double beds—one of which is electrically lowered from the ceiling. A flexible and efficiently utilized space that accommodates up to four sleeping areas, making it perfect for travel with family or friends.

Summary
Layouts
Clothing
Equipment
Technical Specification
Royal x810 LXL

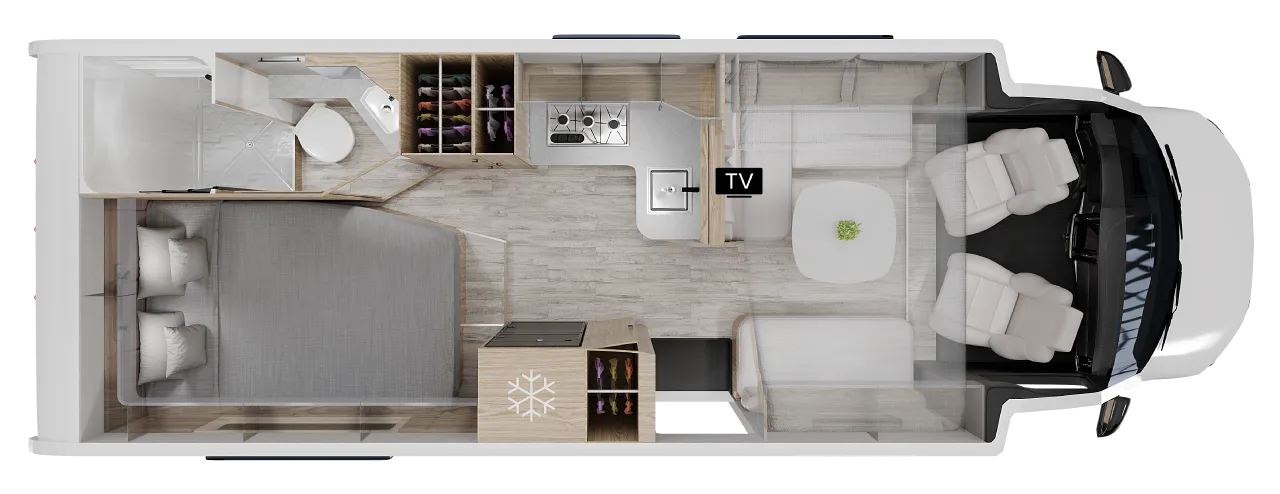

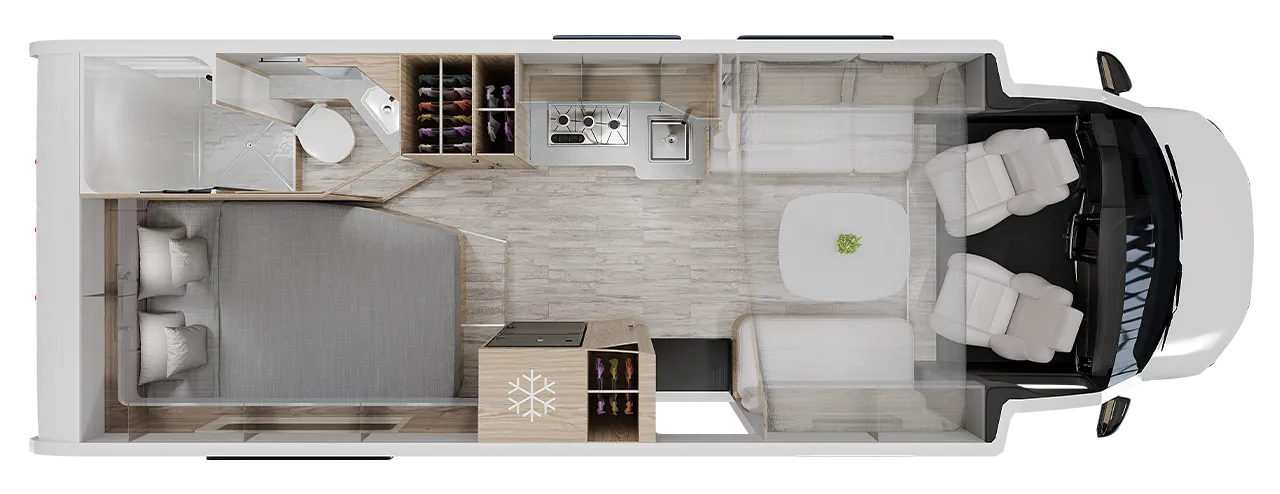

Plan

Here you can see the floor plan

LXL Layouts

LXL

4 beds
Dimensions STD width: 2450 cm

Double bed and toilet with shower cabin on each side at the very back of the vehicle.

Drop-down roof bed for two, above the sofa.

Standard equipment

Gas leak indicator
Isofix
Motorhome assistance
Residual current circuit breaker
Smoke detector
Cargo area lighting
Dimmer for front ceiling light
Exterior 230 V / 12 V / TV outlet / central antenna input
Indirect lighting at overhead cabinets
IP radio via KABE Smart D 2.0
LED lighting
MBUX (including rearview camera)
Night lighting
Rear speakers
TV mount (front only in single-axle models)
USB outlet in the sleeping area
100 Ah lithium battery
12V/230V charging roof bed
30 A Battery Charger
KABE Smart D 2.0 service center with touch panel that controls all functions
12V circulation pump
ALDE Compact 3030 central heating propane
Automatic Floor Heating System AGS II
Convectors at the entrance to the door
Electric heater 230 V, 3 kW, 3-stage
Thermal curtain at the bottom of the caravan
Water heater
Winterized water system
ABS anti-lock braking system
Aluminium exterior walls and roof – decals with a 3D feel
Anti-lock braking system
Buttons on the steering wheel
Chassis: AL-KO 4500 kg
Cruise control
Cup holder
Driver and passenger seats with dual armrests
Driver and passenger seats with height adjustment
Driver and passenger seats with swiveling base
Driver's seat airbag
DRL daytime running light
Electric parking brake
Electric side mirrors (adjustable and heated)
Electric window lifts
Engine: Mercedes-Benz 150 hp (FWD)
ESP/ASR anti-slip and traction control system
Extended arm side mirrors
Fatigue warning system
Fuel tank (diesel) 92 liters
Heavy Duty Motor
Lane centering – Lane departure warning
Manual transmission
Mercedes-Benz ServiceCare Complete
Particle filter
Passenger seat airbag
Protection for seat underlays
Rain sensor
Reinforced tires
Seat heating
Side wind assistent
Sleeping unit comfort
Tempmatic component
Travel light assistant
Wheel rims
Wheelbase 4800 mm
Air gap between the ceiling and roof for optimal sleeping comfort in the overhead bed
Aluminum bed frame
Anti-slip backing for cushion undersides
Atlas Zeder interior
Breathable wall covering
Built-in kitchen drawers
Cashmere Overhead Cabinet Doors
Choose from 4 fabric upholstery options
Continuous roller blind and insect screen on all operable windows
Convertible sofa
Cooktop with electric ignition
Curtains (not in the bedroom)
Darkening curtains (also window coverings)
Driver and passenger seats with KABE's own fixed upholstery
Drop-down double bed over dinette, Electric
Electric draining of fresh water tank (also manual operation)
Electric waste water tank drainage (also manual operation)
Ergonomically designed seat cushions in Premium Foam
Exclusive overhead cabinet doors
Fitted bed cover
Folding head guard
Fresh water tank, 20/130 liters
Gas strut for overhead cabinet
Handle inside the door
Hanging strip with two hooks in the kitchen
Headboard – padded, faux leather imitation with lighting
Heated grey water tank, 90 liters
High-quality carpentry
Interior with optimal air circulation
Kitchen hood with motor and grease filter
Light-colored floor
Lighting strips for overhead cabinets, entryway, and sleeping area
Lighting under the kitchen worktop
Optimized refrigerator ventilation
Optimized ventilation system
Partition door wide – Hartal Evolution
Plexiglass over workbench
Porcelain cabinet doors Cashmere
Refrigerator with freezer compartment – Thetford, shallow (141 liters)
Rotatable cassette toilet, permanently installed with external drainage
Shoe cabinet
Shower with shower wall panels or alternatively, shower in a separate shower cabin
Side garden setup with light strip
Single-lever mixer in kitchen and toilet
Soft-close kitchen drawers
Soundproof, soft interior ceiling
Spiral mattress and sleeping mattress (thinner sleeping mattress in LGB/LQB models)
Toilet room with washbasin, shower tray, cabinet, and countertop in Light Concrete laminate
Toilet water trap
Ventilated roof window Mini Heki with mosquito net and blackout curtain
Waste bin with source separation
Wire baskets in wardrobe
Workbench with 3-burner gas stove
12V / 230V outlet garage
Ecoprim insulation in walls, floors,, and ceilings
King Size width
Kitchen window
Mosquito screen door
Plastic trim strips
Remote-controlled central locking, including the living area door
Sandwich construction
Skyview
Stable and moisture-proof body shell

Technical Specification

  • Interior length, living area 5190 mm
  • Total length 8060 mm
  • Overall height 2980 mm
  • Total width std. 2450 mm
  • Height inside 1960 mm
  • Width inside std. 2316 mm
  • Sleeping places incl. dinette 2 -­ 6
  • Driver + number of passengers 1 + 3
  • Sleeping area in the back 1960 x 1400 / 1120 mm
  • Sleeping place Roof bed 1980 x 1380 / 1050 mm
  • Sleeping space dinette 2230 x 1030 / 1180 mm
  • Door opening B/H 690 x 590 mm

Royal Optional Package

Prime-Comfort

Advanced, Design ...

The comprehensive Prime-Comfort package includes the Advanced and Design packages, as well as an additional twenty or so features...

... and much more!

... 170 hp engine, Royal exterior, Built-in oven located in the workbench, Automatic floor heating system – AGS II Pro, 150 Ah lithium battery... And much more!

View all optional packagesarrow_forward

Advanced

The new Advanced and Advanced Plus packages include a range of features for Mercedes models, such as automatic transmission and Distronic.

View all optional packages

Design / Comfort

The existing packages Design and Komfort have been upgraded.

View all optional packages

Winter

The Winter and Winter Plus packages maximize KABE's already renowned winter capabilities.

View all optional packages
