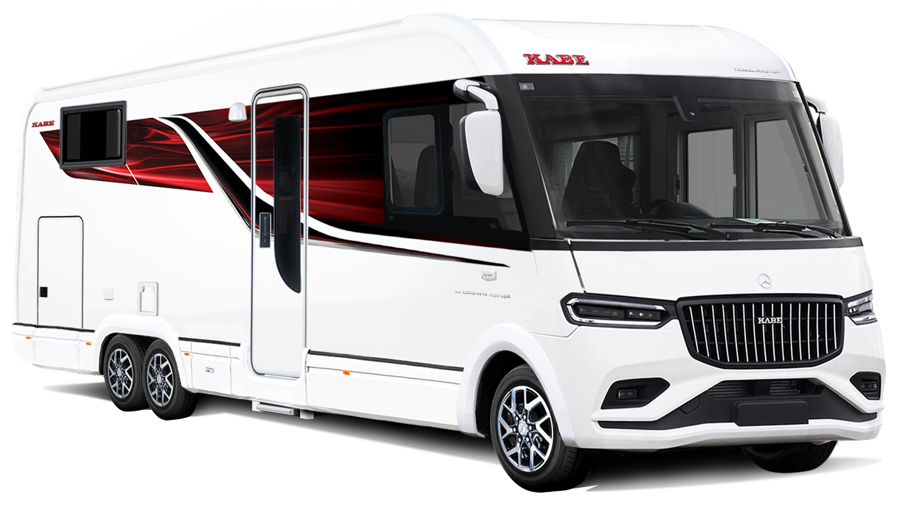

Crown i830 LGB

Crown i830 LGB

Here, you don't have to compromise on living space – beneath the raised long beds at the rear is a generous storage area accessible through a large exterior luggage hatch. The floor plan also includes a well-equipped corner kitchen with ample storage, a comfortable seating area at the front of the vehicle, and a bathroom with a shower. Up to six people can sleep comfortably and smartly.

Summary
Floor plan
Upholstery
Equipment
Technical Specification
Crown i830 LGB

Plan

Here you can see the floor plan

LGB Floor plan

LGB

4 beds
Sleeping area in the back: 2000 x 780 + 2000 x 700 mm
Sleeping area drop-down bed: 1880 x 1220 mm

Two single beds (long beds) at the rear of the vehicle, with a toilet and shower located along one side of the vehicle in the middle.

Drop-down bed for two, above the sofa.

Standard equipment

Gas leak indicator
Isofix
Motorhome assistance
Residual current circuit breaker
Smoke detector
Cargo area lighting
Dimmer for front ceiling light
Exterior 230 V / 12 V / TV outlet / central antenna input
Indirect lighting at overhead cabinets
IP radio via KABE Smart D 2.0
LED lighting
MBUX (including rearview camera)
Night lighting
Rear speakers
TV mount (front only in single-axle models)
USB outlet in the sleeping area
100 Ah lithium battery
12V/230V charging roof bed
30 A Battery Charger
KABE Smart D 2.0 service center with touch panel that controls all functions
12V circulation pumps
Additional heating package in the side door area connected to the underfloor heating system
ALDE Compact 3030 central heating propane
Automatic Floor Heating System AGS II
Convectors at the entrance to the door
Double windows for driver’s side
Electric heater 230V, 3 kW, 3-stage
Heating package at the passenger seat
Thermal curtain at the bottom of the caravan
Water heater
Winterized water system
16” steel wheels with hubcaps
ABS anti-lock braking system
Aluminium exterior walls and roof – decals with a 3D feel
Anti-lock braking system
Attention assist
Buttons on the steering wheel
Chassis: AL-KO 5500 kg
Chrome decor in the grill
Clad instrument panel
Cruise control
Cup holder
Driver and passenger seats with dual armrests
Driver and passenger seats with height adjustment
Driver and passenger seats with swiveling base
Driver's seat airbag
DRL daytime running light
Electric parking brake
Electric side mirrors (adjustable and heated)
Electric sunshades for the windshield
Electric window lifts
Engine: Mercedes-Benz 150 hp – FWD
ESP/ASR anti-slip and traction control system
Fatigue warning system
Fuel tank (diesel) 92 liters
Heavy Duty Motor
Lacquered front bumper
LED lighting for low beam and high beam
Manual transmission
Mercedes-Benz ServiceCare Complete
Particle filter
Passenger seat airbag
Rain sensor
Reinforced tires
Sleeping unit comfort
Tandem
Tempmatic component
Travel light assistant
Wheelbase 4210 mm
Aluminum bed frame
Anti-slip backing for cushion undersides
Atlas Zeder interior
Bodelsdörr Premium – HartaLux
Breathable wall covering
Built-in kitchen drawers
Cashmere Overhead Cabinet Doors
Choose from 4 fabric upholstery options
Continuous roller blind and insect screen on all operable windows
Convertible sofa
Cooktop with electric ignition
Curtains (not in the bedroom)
Darkening curtains (also window coverings)
Drawer box in double floor
Driver and passenger seats with KABE's own fixed upholstery
Drop-down double bed dinette, manual
Electric draining of fresh water tank (also manual operation)
Electric waste water tank drainage (also manual operation)
Electric windshield
Ergonomically designed seat cushions in Premium Foam
Exclusive overhead cabinet doors
Folding head guard
Fresh water tank, 20/280 liters
Gas strut for overhead cabinet
Handle inside the door
Hanging strip with two hooks in the kitchen
Headboard – padded, faux leather imitation with lighting
Heated grey water tank, 150 liters
High-quality carpentry
Interior with optimal air circulation
Kitchen hood with motor and grease filter
Light-colored floor
Lighting strips for overhead cabinets, entryway, and sleeping area
Lighting under the kitchen worktop
Optimized refrigerator ventilation
Optimized ventilation system
Plexiglass over workbench
Porcelain cabinet doors Cashmere
Refrigerator with freezer compartment – Thetford, shallow (141 liters)
Rotatable cassette toilet, permanently installed with external drainage
Rotating plate / gas pull-out rail
Shoe cabinet
Shower with shower wall panels or alternatively, shower in a separate shower cabin
Side garden setup with light strip
Single-lever mixer in kitchen and toilet
Soft-close kitchen drawers
Soundproof, soft interior ceiling
Spiral mattress and sleeping mattress (thinner sleeping mattress in LGB/LQB models)
Toilet room with washbasin, shower tray, cabinet, and countertop in Light Concrete laminate
Toilet water trap
Ventilated roof window Mini Heki with mosquito net and blackout curtain
Ventilated roof windows Heki II with mosquito net and blackout curtain
Waste bin with source separation
Wire baskets in wardrobe
Workbench with 3-burner gas stove
12V / 230V outlet garage
Ecoprim insulation in walls, floors,, and ceilings
Kitchen window
Mosquito screen door
Plastic trim strips
Remote-controlled central locking, including the living area door
Sandwich construction
Stable and moisture-proof body shell

Technical Specification

  • Interior length, living area 5564 mm
  • Total length 8320 mm
  • Overall height 3065 mm
  • Total width std. 2329 mm
  • Height inside 1960 mm
  • Width inside std. 2180 mm
  • Sleeping places incl. dinette 2 -­ 6
  • Driver + number of passengers 1 + 3
  • Sleeping area in the back 2000 x 780 + 2000 x 700  mm
  • Sleeping area drop-down bed 1880 x 1220 mm
  • Sleeping area dinette 2060 x 1175 / 555 mm
  • Door opening B/H 2 x 945 x 1170 mm

Crown Optional Package

Prime-Comfort

Advanced, Design ...

The comprehensive Prime-Comfort package includes the Advanced and Design packages, as well as an additional twenty or so items...

... and much more!

... 170 hp engine, Royal exterior, Built-in oven located in the workbench, Automatic floor heating system – AGS II Pro, 150 Ah lithium battery... And much more!
