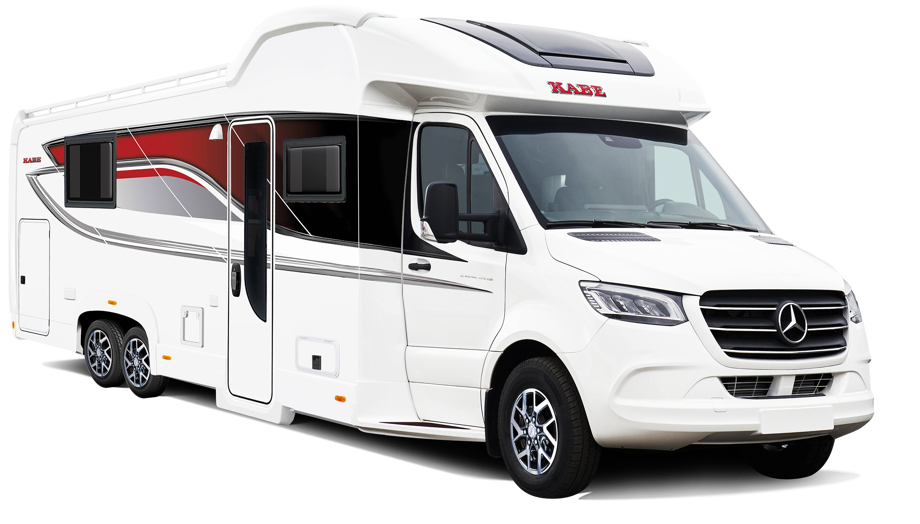

Royal x910 LQB

Royal x910 LQB

For those who want plenty of space – both for yourself and your guests. There is a large, centrally located double bed at the rear, and above the seating area, an electrically lowered extra bed for two. Comfortable holiday feeling with KABE standard in every detail.

Summary
Layouts
Clothing
Equipment
Technical Specification
Royal x910 LQB

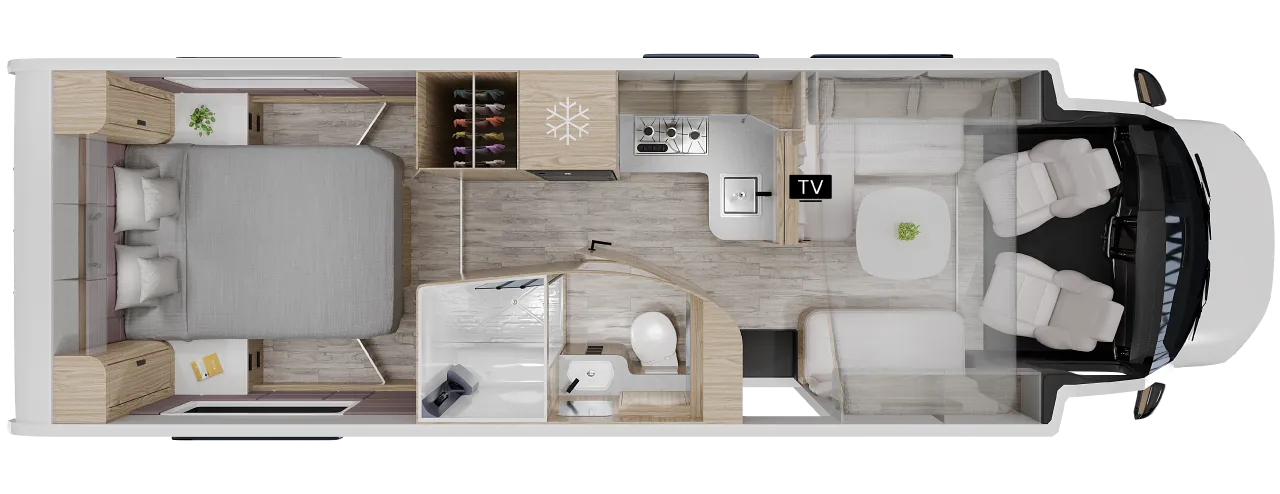

Plan

Here you can see the floor plan

LQB Layouts

LQB

4 beds
Dimensions STD width: 2450 cm

Large double bed, centered at the rear of the vehicle.

Drop-down roof bed for two, above the sofa.

Standard equipment

Gas leak indicator
Isofix
Motorhome assistance
Residual current circuit breaker
Smoke detector
Cargo area lighting
Dimmer for front ceiling light
Exterior 230 V / 12 V / TV outlet / central antenna input
Indirect lighting at overhead cabinets
IP radio via KABE Smart D 2.0
LED lighting
MBUX (including rearview camera)
Night lighting
Rear speakers
TV mount (front only in single-axle models)
USB outlet in the sleeping area
100 Ah lithium battery
12V/230V charging roof bed
30 A Battery Charger
KABE Smart D 2.0 service center with touch panel that controls all functions
12V circulation pump
ALDE Compact 3030 central heating propane
Automatic Floor Heating System AGS II
Convectors at the entrance to the door
Electric heater 230 V, 3 kW, 3-stage
Thermal curtain at the bottom of the caravan
Water heater
Winterized water system
ABS anti-lock braking system
Aluminium exterior walls and roof – decals with a 3D feel
Anti-lock braking system
Buttons on the steering wheel
Chassis: AL-KO 5200 kg
Cruise control
Cup holder
Driver and passenger seats with dual armrests
Driver and passenger seats with height adjustment
Driver and passenger seats with swiveling base
Driver's seat airbag
DRL daytime running light
Electric parking brake
Electric side mirrors (adjustable and heated)
Electric window lifts
Engine: Mercedes-Benz 150 hp (FWD)
ESP/ASR anti-slip and traction control system
Extended arm side mirrors
Fatigue warning system
Fuel tank (diesel) 92 liters
Heavy Duty Motor
Lane centering – Lane departure warning
Manual transmission
Mercedes-Benz ServiceCare Complete
Particle filter
Passenger seat airbag
Protection for seat underlays
Rain sensor
Reinforced tires
Seat heating
Side wind assistent
Sleeping unit comfort
Tandem
Tempmatic component
Travel light assistant
Wheel rims
Wheelbase 4700 mm
Air gap between the ceiling and roof for optimal sleeping comfort in the overhead bed
Aluminum bed frame
Anti-slip backing for cushion undersides
Atlas Zeder interior
Breathable wall covering
Built-in kitchen drawers
Cashmere Overhead Cabinet Doors
Choose from 4 fabric upholstery options
Continuous roller blind and insect screen on all operable windows
Convertible sofa
Cooktop with electric ignition
Curtains (not in the bedroom)
Darkening curtains (also window coverings)
Driver and passenger seats with KABE's own fixed upholstery
Drop-down double bed over dinette, Electric
Electric draining of fresh water tank (also manual operation)
Electric waste water tank drainage (also manual operation)
Ergonomically designed seat cushions in Premium Foam
Exclusive overhead cabinet doors
Fitted bed cover
Folding head guard
Fresh water tank, 20/130 liters
Gas strut for overhead cabinet
Handle inside the door
Hanging strip with two hooks in the kitchen
Headboard – padded, faux leather imitation with lighting
Heated grey water tank, 90 liters
High-quality carpentry
Interior with optimal air circulation
Kitchen hood with motor and grease filter
Light-colored floor
Lighting strips for overhead cabinets, entryway, and sleeping area
Lighting under the kitchen worktop
Optimized refrigerator ventilation
Optimized ventilation system
Partition door wide – Hartal Evolution
Plexiglass over workbench
Porcelain cabinet doors Cashmere
Refrigerator with freezer compartment – Thetford, deep (167 liters)
Rotatable cassette toilet, permanently installed with external drainage
Shoe cabinet
Shower with shower wall panels or alternatively, shower in a separate shower cabin
Side garden setup with light strip
Single-lever mixer in kitchen and toilet
Soft-close kitchen drawers
Soundproof, soft interior ceiling
Spiral mattress and sleeping mattress (thinner sleeping mattress in LGB/LQB models)
Toilet room with washbasin, shower tray, cabinet, and countertop in Light Concrete laminate
Toilet water trap
Ventilated roof window Mini Heki with mosquito net and blackout curtain
Waste bin with source separation
Wire baskets in wardrobe
Workbench with 3-burner gas stove
12V / 230V outlet garage
Ecoprim insulation in walls, floors,, and ceilings
King Size width
Kitchen window
Mosquito screen door
Plastic trim strips
Remote-controlled central locking, including the living area door
Sandwich construction
Skyview
Stable and moisture-proof body shell

Technical Specification

  • Interior length, living area 6215 mm
  • Total length 9060 mm
  • Overall height 2980 mm
  • Total width std. 2450 mm
  • Height inside 1960 mm
  • Width inside std. 2316 mm
  • Sleeping places incl. dinette 2 -­ 6
  • Driver + number of passengers 1 + 3
  • Sleeping area in the back 1980 x 1520 / 1100 mm
  • Sleeping place Roof bed 1980 x 1380 / 1050 mm
  • Sleeping space dinette 2230 x 1380 / 950 mm
  • Door opening B/H 2 x 690 x 995 mm
