Royal 780 BGXL

Royal 780 BGXL

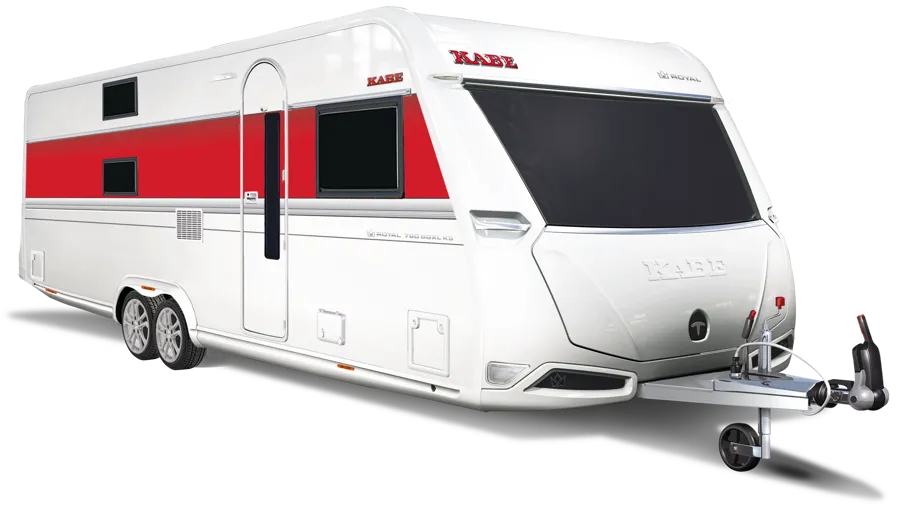

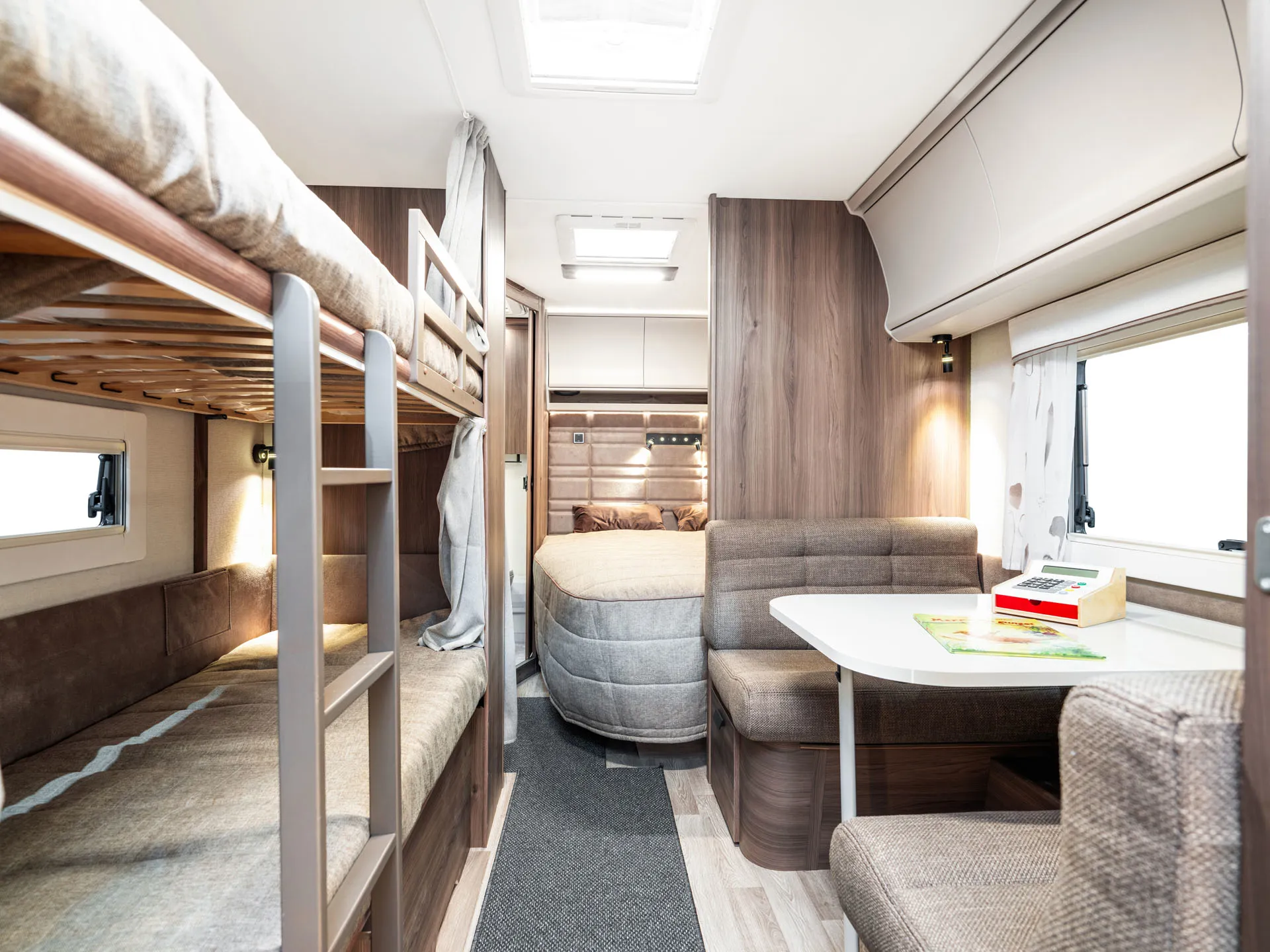

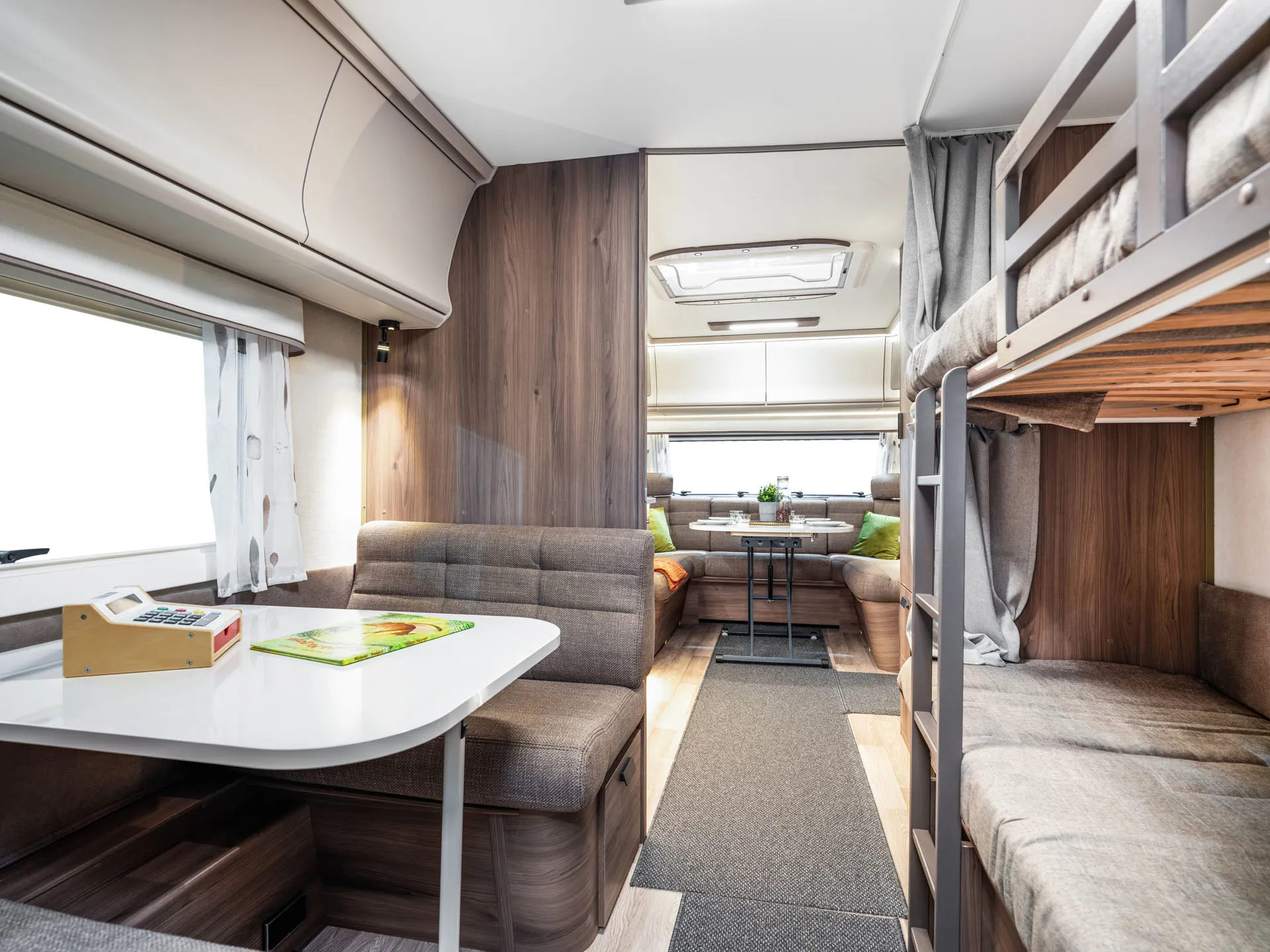

Royal 780 BGXL – perfect for large families. Comfortable and thoughtfully designed layout with sleeping areas for adults, practical bunk beds for children, two separate seating areas, and a spacious bathroom. The tandem-axle construction provides extra stability and driving comfort, especially on longer trips. The DXL variant with a separate shower is available as an option. New! The King Size layout features a 9 cm wider bed at the rear (the bathroom maintains the same dimensions as in the standard width).

Summary
Floor plan
Upholstery
Equipment
Photos/360
Technical Specification
Royal 780 BGXL

Optional floor plans

Find the right floor plan for you below

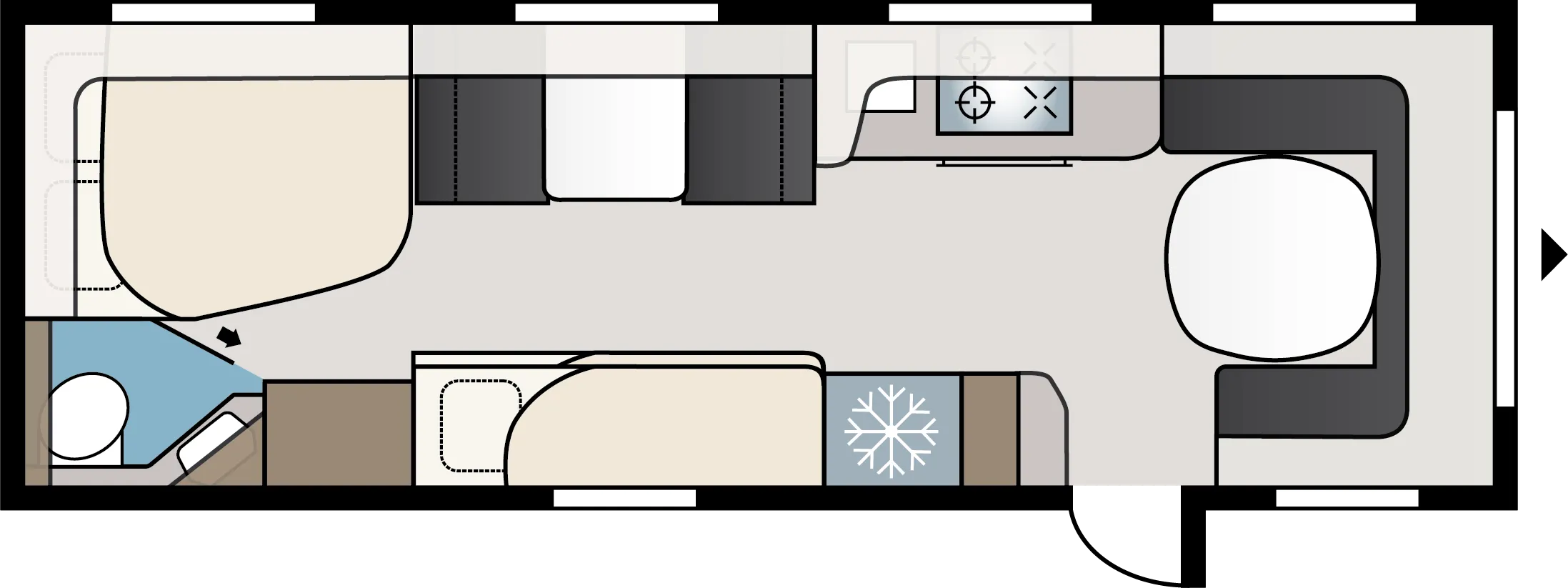

XV2 Floor plan

XV2

4 beds
Bed space:: 190 x 149/127 + 2 x 196 x 68 cm

Toilet area with shower (shower cabin in DXL) located in the far back corner.

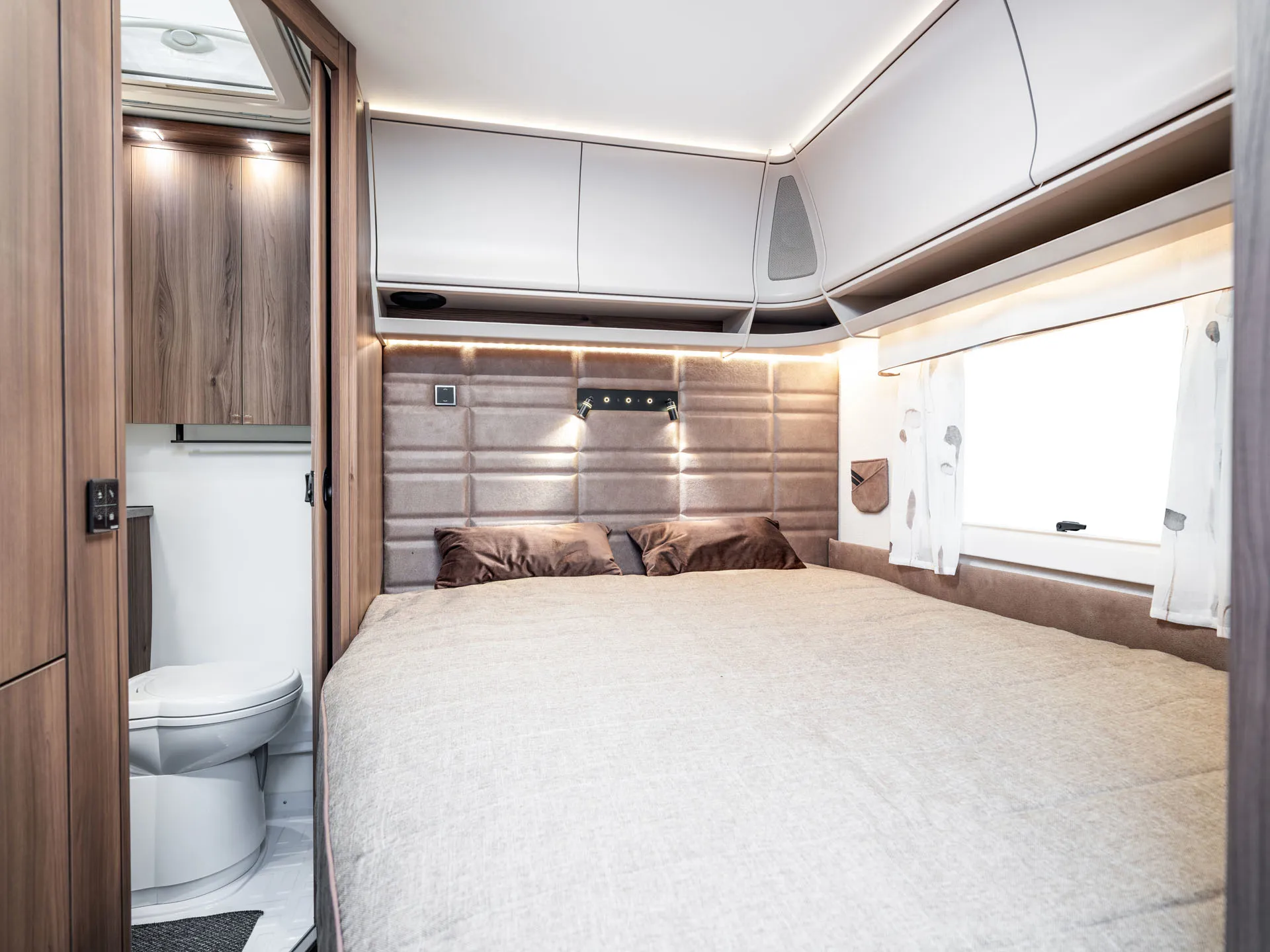

Large double bed, located at the rear right of the caravan. Convertible seating area at the front.

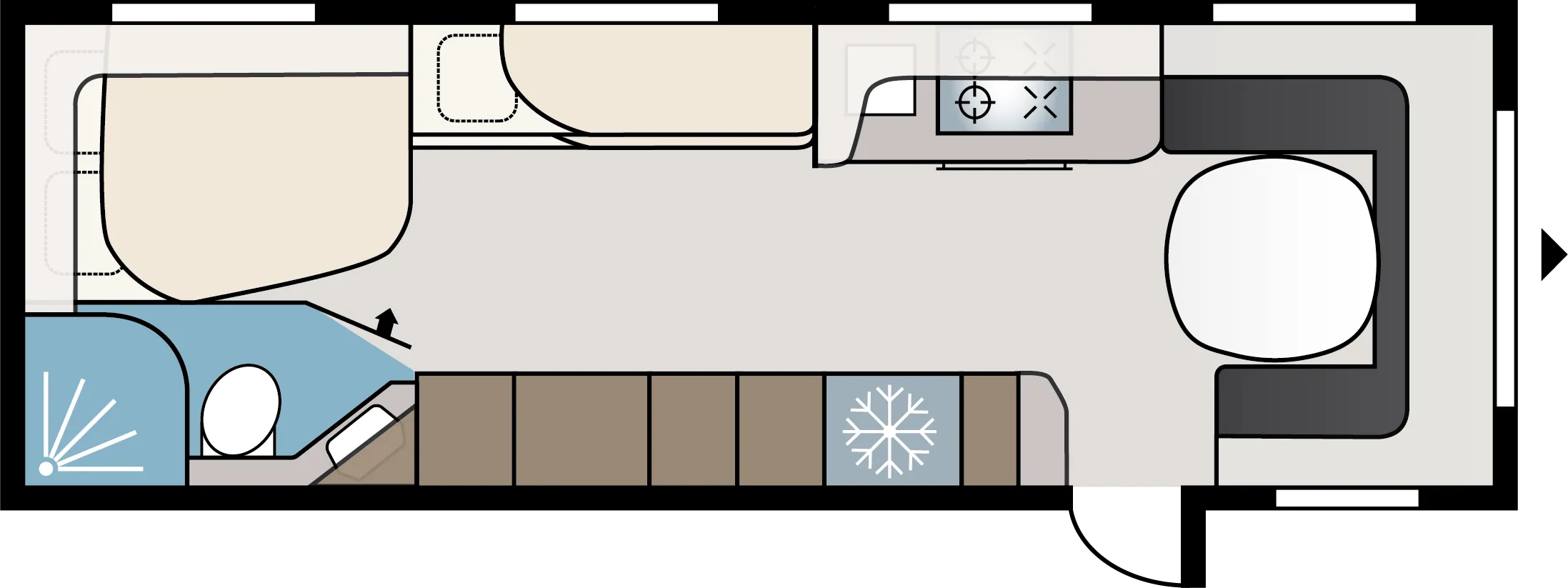

DXL Floor plan

DXL

4 beds

Toilet area with shower (shower cabin in DXL) located in the far back corner.

Standard equipment

Automatic water system / water heater
Connection for outdoor shower / hot and cold water
Laminated Light Concrete in a countertop (light concrete look)

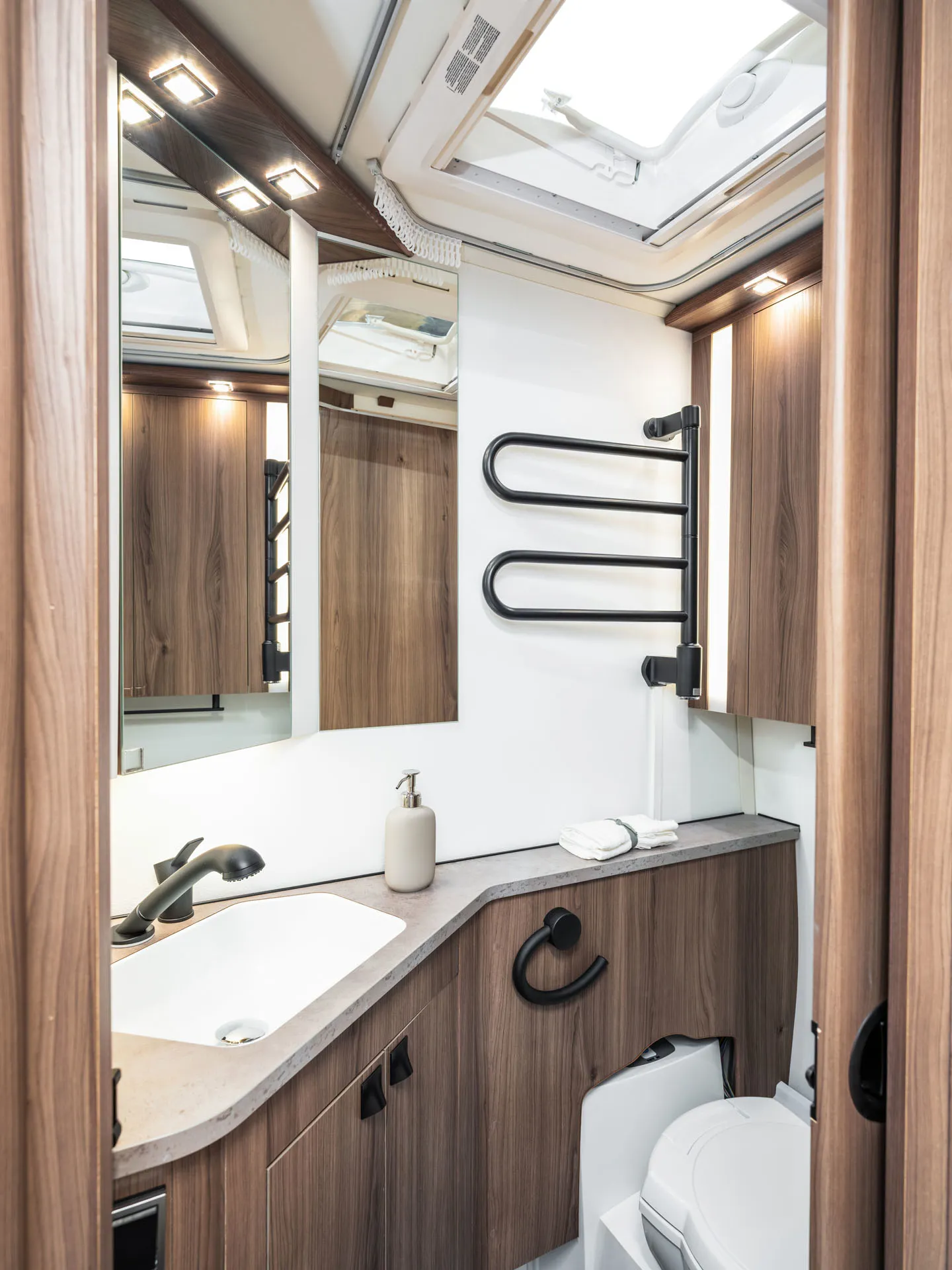

Rotatable flush toilet, permanently installed with external drainage
Shower cabin / Shower tray and hand shower / Shower curtain and rail
Towel radiator (some models with timer)
Aluminum bed frame
Curtains (included in certain models)
Folding main bed guard
Headboard – padded, in faux leather imitation
Spiral mattress 12 cm + mattress toppers 6 cm (not applicable to bunk beds / overhead beds)
The bottom panel in the bed drawers
Wire shelves for wardrobe
15" alloy wheel, gray
AL-KO fully galvanized steel profile chassis with self-adjusting brakes
Anti-sway friction clutch
Breathable wall covering
Custom-molded protective mat in gas bottle compartment
Decals on the air intakes at the bottom of the front
Decals on the sides at the front and rear
Ecoprim insulation (floor, roof, and walls) 36 mm
Electronic stability system, ATC (Anti-Slip System)
Exclusive body with integrated all-around profile
Extended drawbars
Exterior door (Seitz) with window, integrated insect screen, and threshold heating
Integrated gas bottle compartment in ABS with lighting, wagon-width
Kitchen window
Light strip along the entire door wall
Luggage hatch (not B8, B10)
Mid-height windows with continuous insect screen and blackout curtain
Mosquito screen door
Opening front window
Parking brake with reverse automation
Plastic trim strips
Sandwich construction
Skylight 40x40
Skylight Heki II
Sliding compartment with retractable bottom, external lockable hatch, and lighting
Smooth sheet metal with embossed pattern
Soft interior ceiling
Splash guard behind the wheel
Stable and moisture-proof body shell
Tire Continental
Tow hitch cover
Ventilating roof windows Mini Heki with mosquito net and blackout curtains
Window in the exterior door
12V circulation pump
Alde Compact 3030 central heating with touchscreen for clock, indoor and outdoor temperature
Automatic water-based underfloor heating system - 4 loops and shunt system (AGS II Pro)
Drying cabinet with drip tray and lockable ventilator (available in several models)
Dual temperature sensors
Heated shoe compartment
Load monitor that automatically reduces/disconnects the stove's power consumption
Optimized ventilation system
VarioVent - unique ventilation system
Ventilation hatch
12V connection with 13-pin connector, Jäger system
230V outlet window shelf
Battery 80 Ah
Battery charger 25 A
Dimmer for front ceiling light
Dimmer for light bar at the front assembly
Dimmer for mood lighting in the kitchen
Elbox: external 230V / 12V outlet, central antenna connection, 230V indicator light, lighting with switch
Electrical panel 230V, 16A with circuit breakers
Exterior 230 V / 12 V outlet
Front compartment lighting (LED) in aluminum profile
Gas leak indicator
Gas stove case lighting
Indirect overhead cabinet lighting at the rear
LED lighting in all lamps
LED lighting near the refrigerator Neonflex
Light strip for windows
Lighting for ski compartment
Media center with IP radio included in Smart D 2.0
Night lighting
Reading lamps – black
Residual current circuit breaker
Router
Service center with control panel
Smart D electrical system
Smoke detector
Speakers front and rear, as well as subwoofer
TV mount
USB bunk bed
Wardrobe lighting and lighting in bed drawers
Wireless charging pad
40-liter water tank with external filling
Black handles
Built-in drawers
Cooktop with electric ignition
Gray water tank 32 liters (built-in and external gray water bag)
Hanging strip with two hooks
Interior gray water tank
Kitchen hood with motor, grease filter, and lighting
Lock for the sink
Matte black metallic refrigerator front
Optimized refrigerator ventilation
Plexiglas with lighting at the workbench

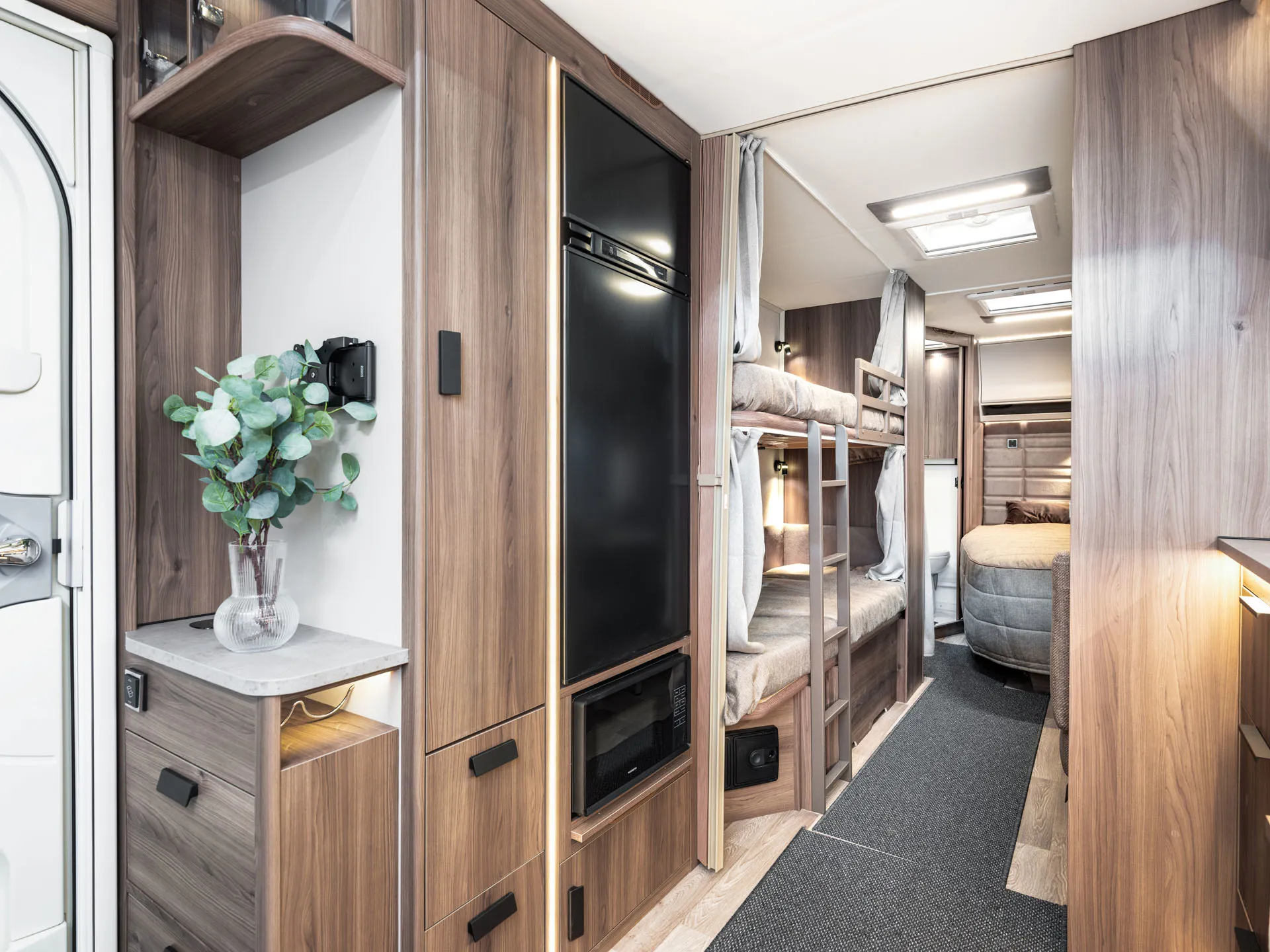

Refrigerator 230 V / 12 V / propane. Capacity 167 liters, including freezer compartment 29 liters
Single-lever mixer, in kitchen and toilet
Soft-close kitchen drawers

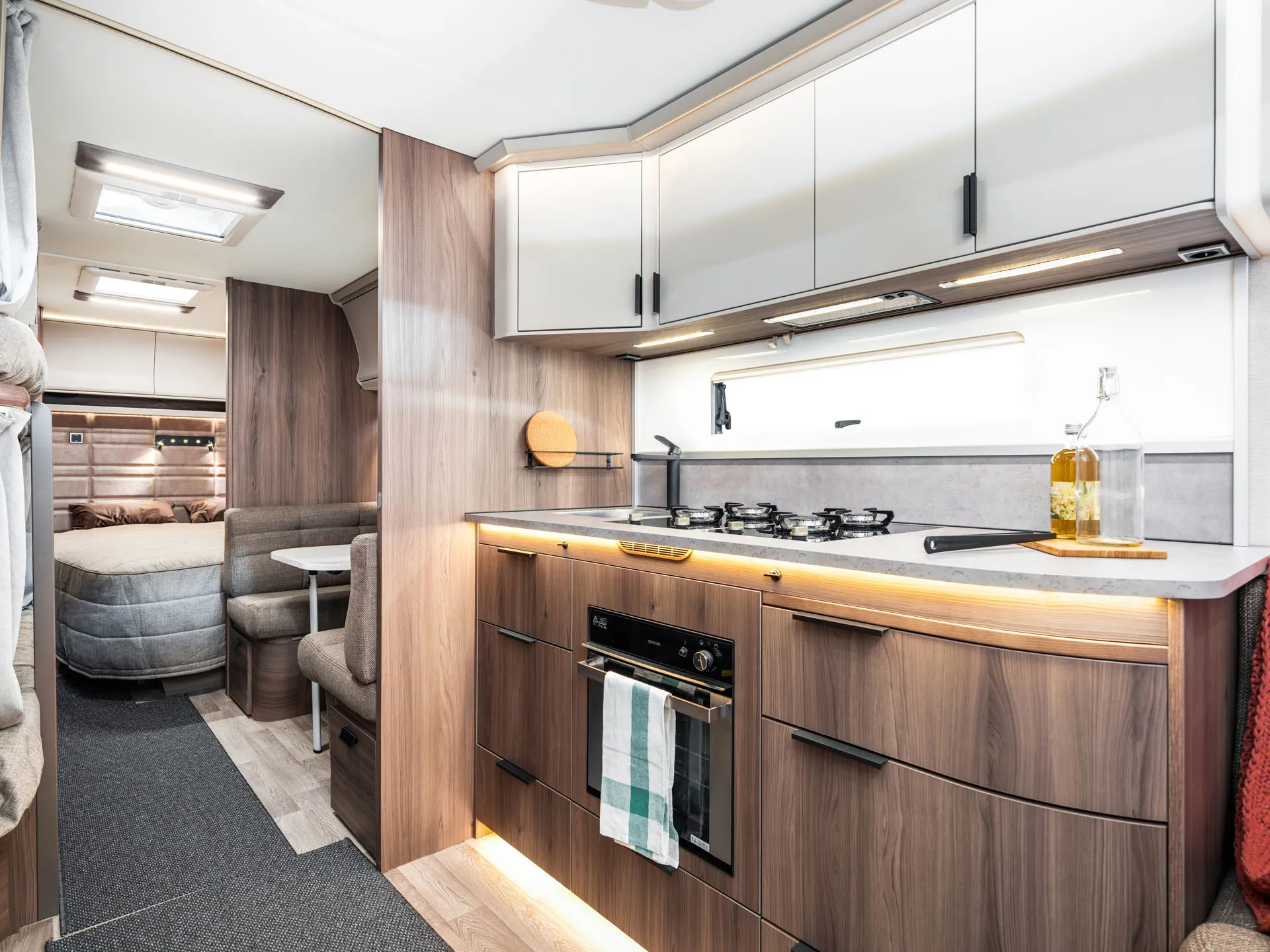

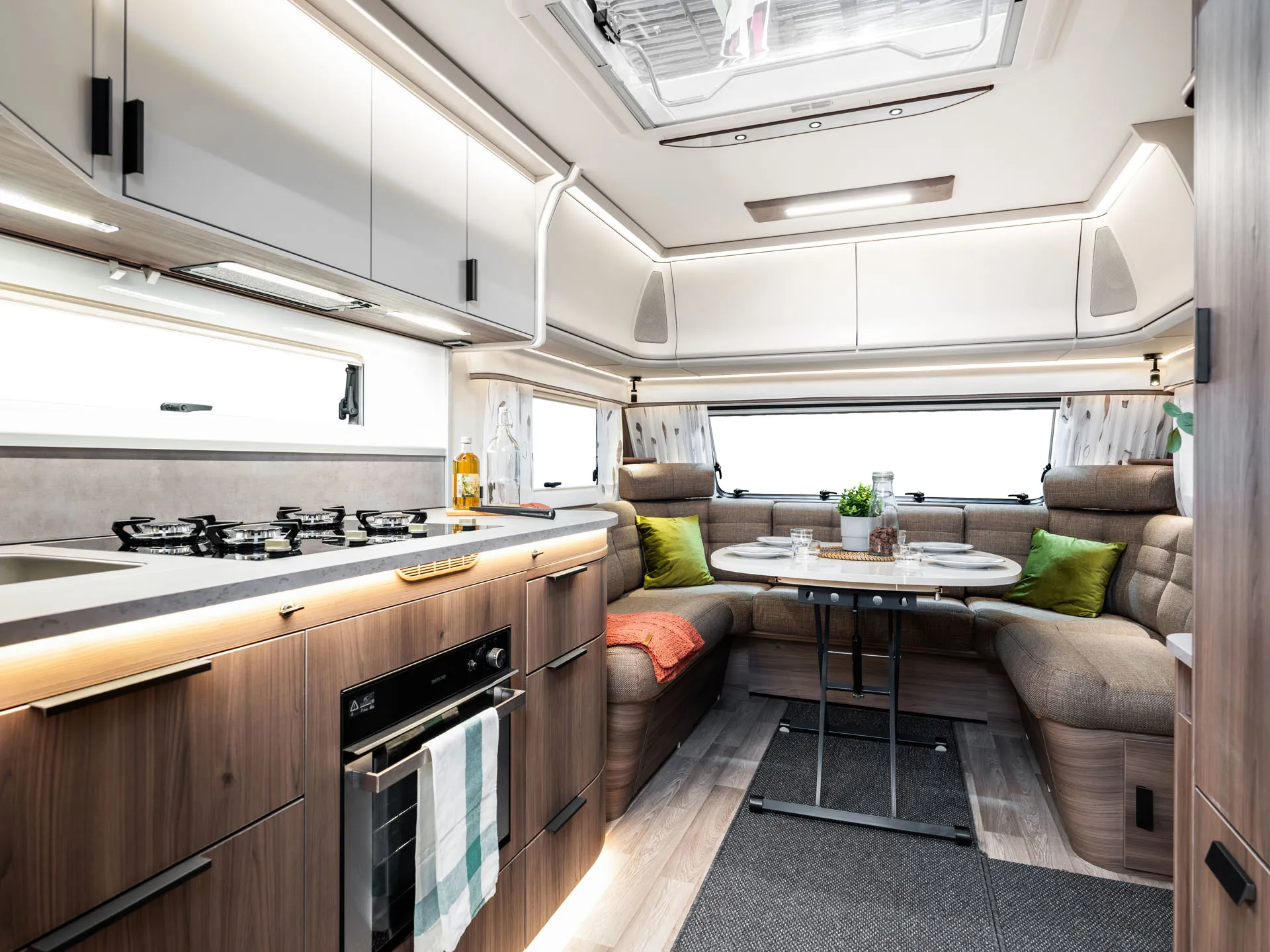

Workbench in Atlas Zeder with 4-burner gas stove and built-in oven
2 leather collections (Cornwall, Somerset) – additional charge
4 fabric collections (Tulsa, Phoenix, New Haven, Tucson)
Anti-slip backing for cushion undersides
Bar cabinet with tinted plexiglass and bottle storage (from the side) in hurts
Ceiling lamp covered in faux suede (and FK front lighting ramp)
Corner shelves at the front
Curtain mounting with kappa
Cutting board (not wall-mounted or pedestal table)
Decorative cushions
Ergonomic seat cushions
Exclusive overhead cabinet doors
Folding sofas
Gas strut for overhead cabinet
Headrest – height-adjustable and foldable, with lateral adjustment
High-quality carpentry
Indirect lighting underneath upper cabinets
Interior Atlas Zeder
Matching flooring
Porcelain cabinet doors Cashmere
Premium foam padding
Upper cabinet doors front and rear Cashmere
Central vacuum system
Entryway wardrobe (in certain models)
External gas connection for grill located in gas bottle compartment
Lockable water tank cover
Unified locking system, one key for all locks
Waste bin with source separation

360-view

Technical Specification

  • Total length 940 cm
  • Overall height 278 cm
  • Total width KS 250 cm
  • Body length 815 cm
  • Body length inside 720 cm
  • Height inside 196 cm
  • Width inside KS 235 cm
  • Sleeping area KS – front 225 x 165/136 cm
  • A-Dimensions 1200 cm
  • Sleeping place Flexline XV2 KS 190 x 149/127 + 2 x 196 x 68 cm
  • Sleeping place Flexline DXL KS 190 x 140/118 + 2 x 196 x 68 cm
  • Sleeping area dinette 191 x 88 cm
  • Living space KS 16.9 m²
