Imperial 780 TDL FK

This model was developed especially for those who love to cook! In the front of the caravan, you will find a 235 cm wide kitchen with an exclusive induction cook top, built-in oven, microwave and a panoramic window. In addition, it features a generous living area, flexible bedroom solutions, a large bathroom and lots of storage.

Imperial 780 TDL FK - KABE

Floorplans

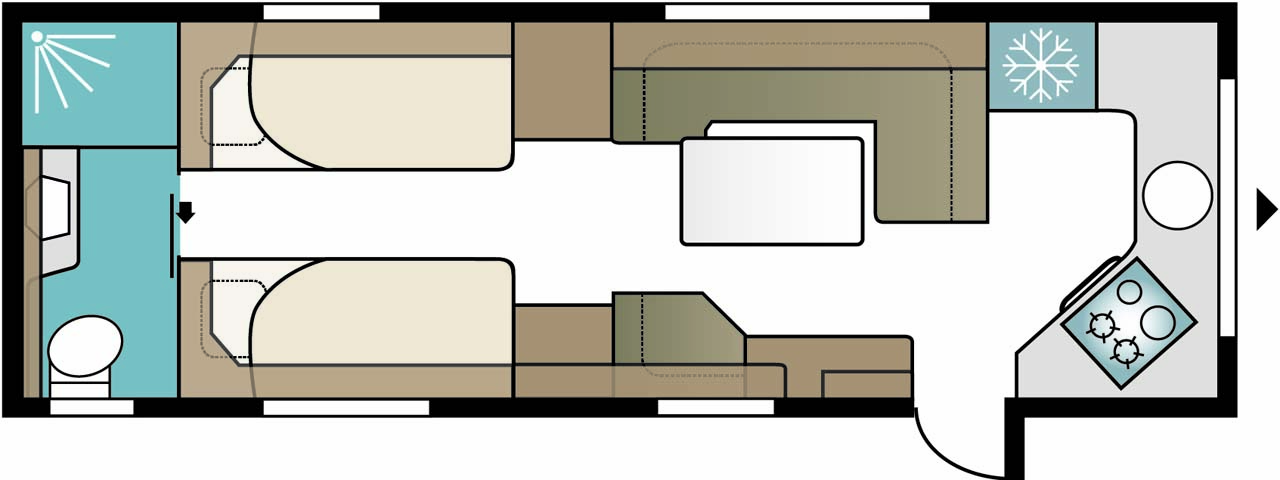

E2 I780TDLFK - Kabe

E2

Permanent beds: 2 st

211 x 102 cm + 2 x 196 x 88 cm

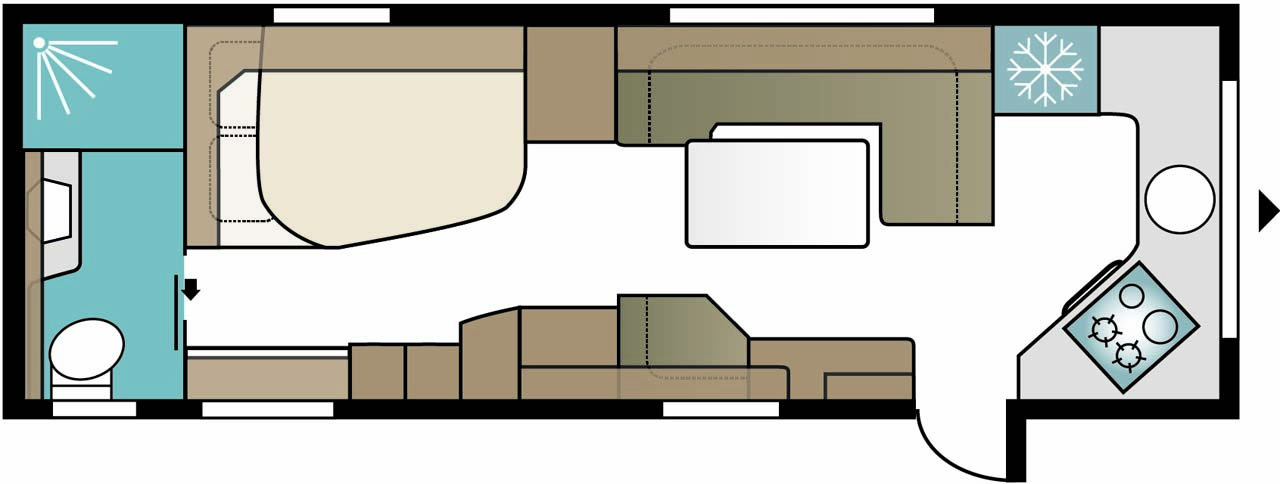

E5 I780TDLFK - Kabe

E5

Permanent beds: 3 st

211 x 102 cm + 190 x 140/118 cm

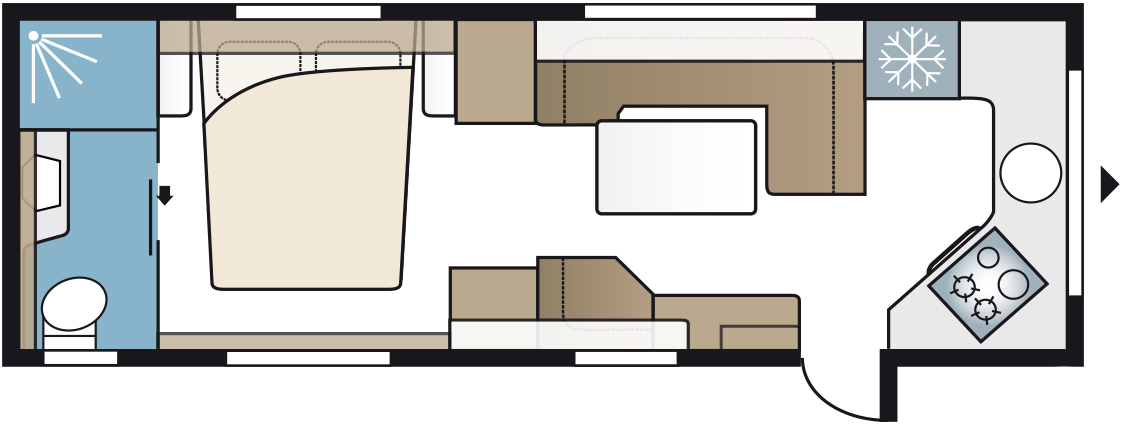

E8 I780TDLFK - Kabe

E8

Permanent beds: 2 st

211 x 102 cm + 199 x 156/118 cm

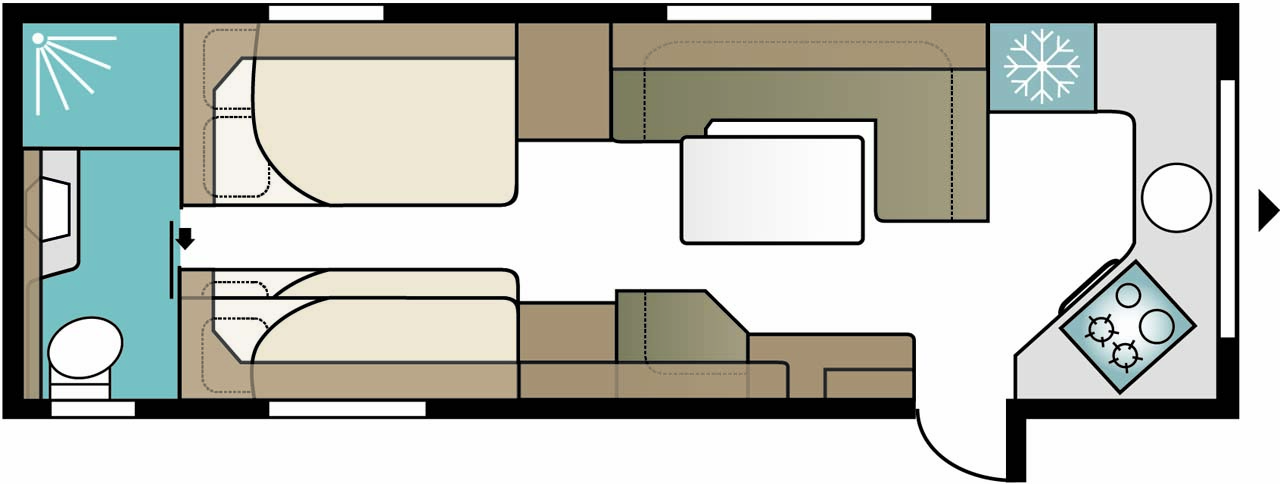

E9 I780TDLFK - Kabe

E9

Permanent beds: 4 st

211 x 102 cm + 196 x 140 + 2 x 196 x 60 cm

Textiles

Appleton - KABE

Appleton

Fabric upholstery

Lexington - KABE

Lexington

Fabric upholstery

Hamilton - KABE

Hamilton

Fabric upholstery

Gladstone - KABE

Gladstone

Fabric upholstery

Bloomington - KABE

Bloomington

Leather upholstery

Rockford - KABE

Rockford

Leather upholstery

Madison - KABE

Madison

Leather upholstery

Standard equipment

  • 17" Diamond Cut aluminium rims
  • 36 mm Ecoprim-insulation (floor, ceiling and walls)
  • Anti-lurch friction clutch
  • Continental tyres
  • Electronic stabilisation system, ATC (Anti-skid system)
  • Exclusive body with integrated all-round profile
  • Extended two beams
  • Fitted protective mat in gas unit
  • Front door (Seitz) with window, integrated screen and threshold heat
  • Front door window
  • Fully galvanised steel profile chassis
  • Heki 2 skylight
  • Innovation Design smooth panels
  • Integrated, full width gas unit in ABS with lighting
  • Luggage compartment
  • Mini Heki ventilated roof hatch with screen and black out shade
  • Mud flaps behind wheels
  • Openable front window
  • Plastic beams
  • Sandwich construction
  • Screen door
  • Self adjusting brakes on chassis
  • Skibox with pull-out bottom, exterior door with lock and lighting
  • Sliding brake with automatic back up function
  • Soft design ceiling
  • Stable and waterproof body
  • Tinted windows with stepless screen and black out curtain
  • Tow-bar cover
  • Ventilated wall covering
  • 12 V circulation pump / 230V, 3 kW, 3-step electric element
  • Alde Compact 3030 central heating with touch screen for clock, inside and outside temperatures
  • Alde zone heating
  • Automatic waterborne under floor heating system – 4 loops and shunt system (AGS II Pro)
  • Double temperature sensors
  • Drying cupboard with drip tray and ventilation that can be closed
  • Fresh Jet air-conditioner
  • Heated shoe compartment
  • Load monitor that automatically reduces / or disconnects the boilers electricity consumption
  • Optimised ventilation system
  • VarioVent – unique ventilation system
  • Ventilation hatch
  • 230 V / 12 V / gas refrigerator: 177 litre volume, 35 litre freezer
  • 40 litre water tank with exterior filling
  • Bronze coloured refrigerator front
  • Connection for outdoor shower / warm and cold water
  • Gloss chrome handles
  • Interior waste water tank
  • KABE AutoDrain (automatic emptying of the water system)
  • Kitchen counter with induction stove, gas burners and built-in oven
  • Kitchen sink lid
  • Microwave
  • Motorised kitchen fan with grease filter and lighting
  • Optimised refrigerator ventilation
  • Plexiglass with lighting by the kitchen counter
  • Recessed drawers
  • Single handle tap in kitchen and bathroom
  • Soft-close kitchen drawers
  • Stove with electric ignition
  • Wastewater tank (32 litre) built-in + exterior wastewater bag
  • 3 leather upholstery collections
  • 4 fabric upholstery collections
  • Accent pillows
  • Anti-slip covered underside of cushions
  • Bar cabinet with tinted plexiglass
  • Beige laminat: belysningsramper, hurtsskivor bak, bord
  • Beige laminate: light fixtures, rear console tops, table
  • Corner shelves, in the front
  • Curtain set with valance
  • Ergonomic seat cushions
  • Exclusive overhead cabinet doors
  • Extendible table top (not in wall mounted table)
  • Folding sofa
  • Gardinupphängning med kappa
  • Head rest
  • Indirect lighting underside of overhead cabinets
  • Lighting on the underside of overhead cabinets
  • Nordic Oak interior
  • Overhead cabinet doors in front – beige with anthracite gray / rear – Nordic Oak with anthracite gray
  • Overhead kitchen cabinet doors in beige
  • Premium Foam cushions
  • Slide-out soffa
  • Superior quality carpentry
  • 12 cm spring mattress + 6 cm top pad (not in bunk beds / loft beds)
  • Adjustable headboard
  • Aluminium bed frame
  • Electric headboard (not in E9 bed)
  • Extra bottom under bed compartment
  • Headboard – padded in faux suede
  • Wire shelves in wardrobe
  • Automatic water system / hot water heater
  • Exterior shower
  • Swivel flush toilet with ceramic bowl, permanently installed with external emptying
  • Towel dryer (timer if appropriate)
  • Walk-in shower / Shower stall with hand shower / Shower curtain
  • 12 V connection with 13-pin connector, Jäger system
  • 230 V / 12 V exterior outlet
  • 230 V outlet windowsill
  • 30 A battery charger
  • 80 Ah battery
  • Chrome spotlights
  • Dimmer front ceiling light
  • Dimmer kitchen mood lighting
  • Dimmer light fixture by front seating area
  • Electrical box: 230 V / 12 V exterior outlet, central antenna connection, 230 V indicator, light switch
  • Electrical station: 230 V, 16 A with automatic fuses / ground fault circuit breaker
  • Fire alarm
  • Gas leak indicator
  • Gas unit lighting
  • Ground fault circuit breaker
  • Indirect lighting rear overhead cabinets
  • KABE Premium Sound System with DAB
  • KABE VarioVent
  • LED in all lights
  • LED lighting by refrigerator
  • Light strip in windows
  • Night lights
  • Router
  • Service centre with control panel
  • Ski-box lighting
  • Smart D electric system
  • TV antenna with booster
  • TV mount
  • USB in bunk beds
  • Wardrobe lighting and lighting in bed compartment
  • Wireless charging station
  • Central vacuum cleaner
  • Entry area wardrobe
  • Exterior gas connection for grill placed in the gas unit
  • Uniform locking system, one key for all locks
  • Waste bin with sorting at source
  • Water tank cover with lock

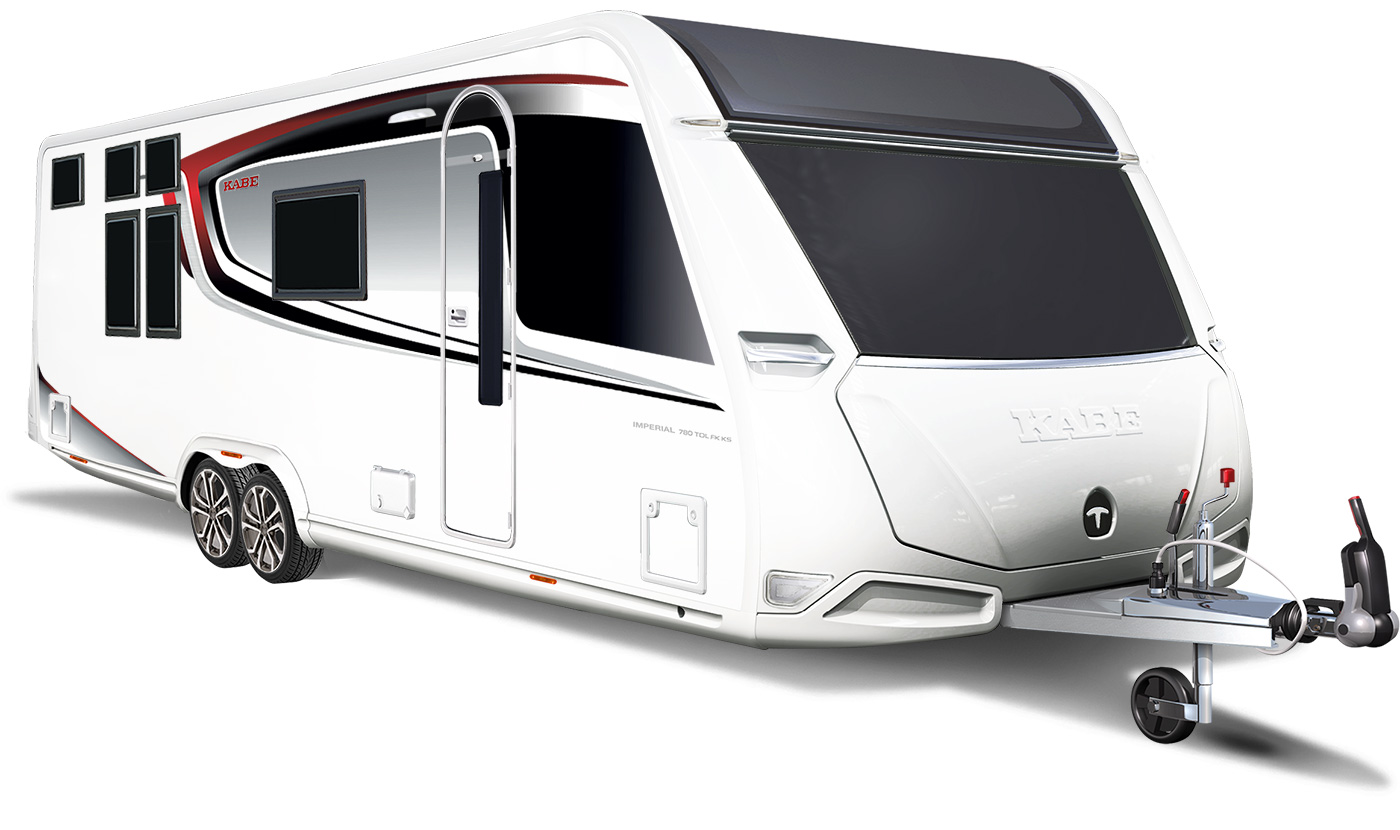

Photos

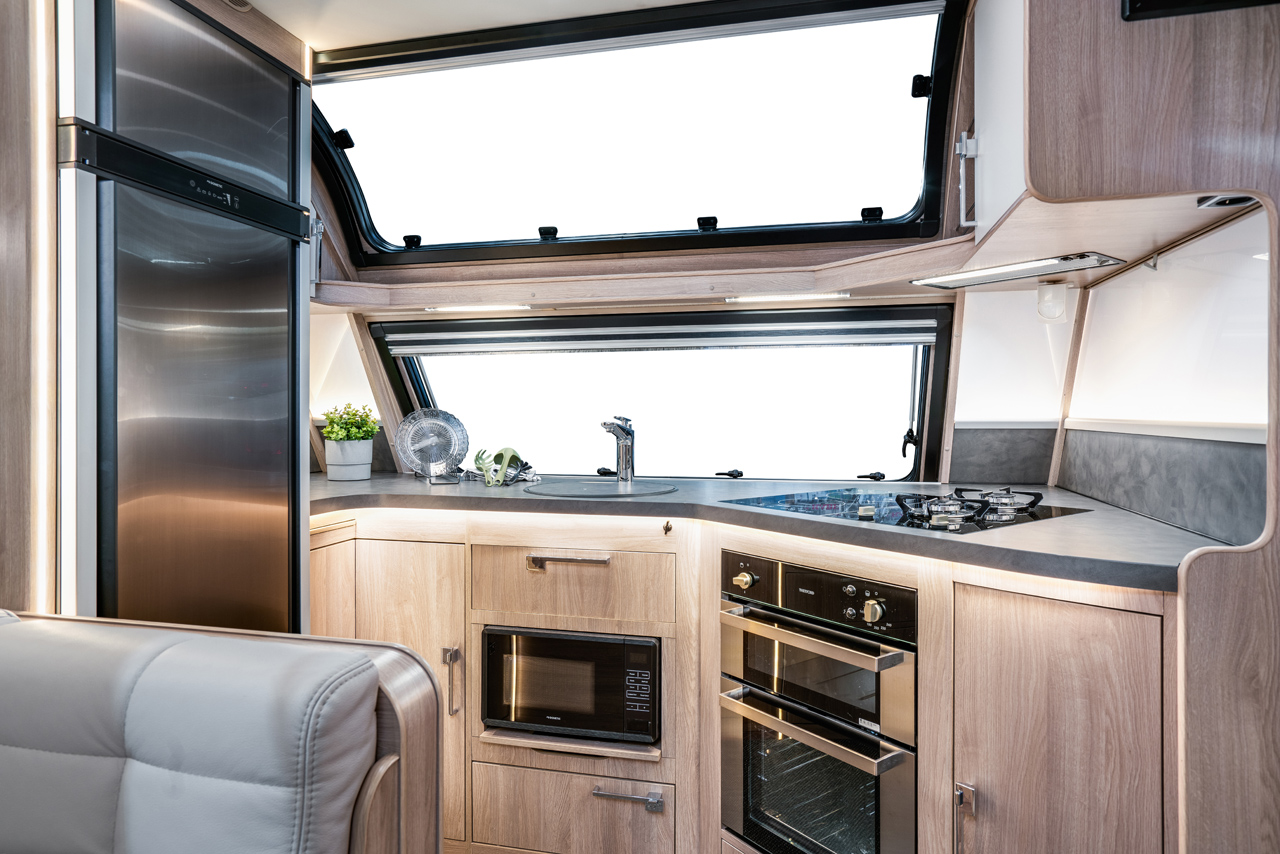

I780TDLFK - 1- Kabe

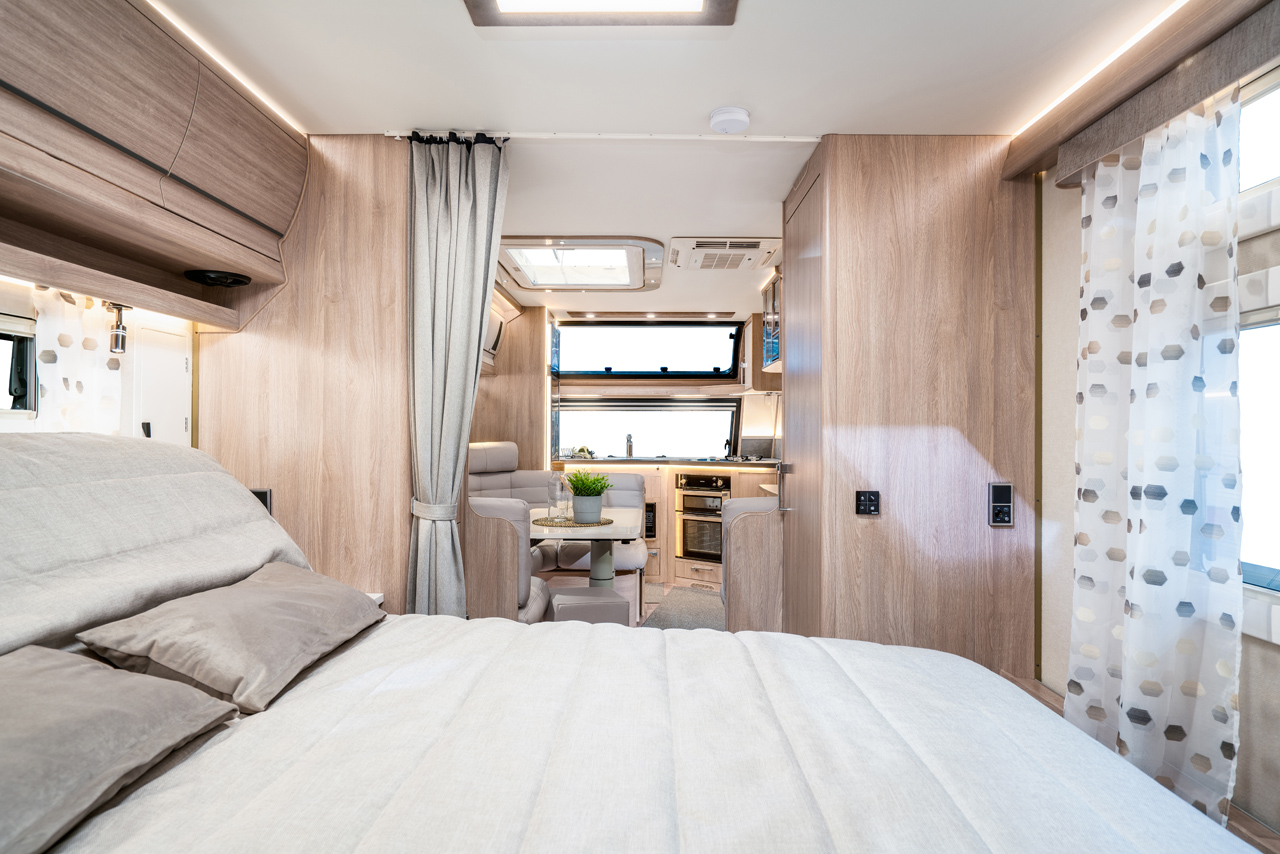

I780TDLFK - 2- Kabe

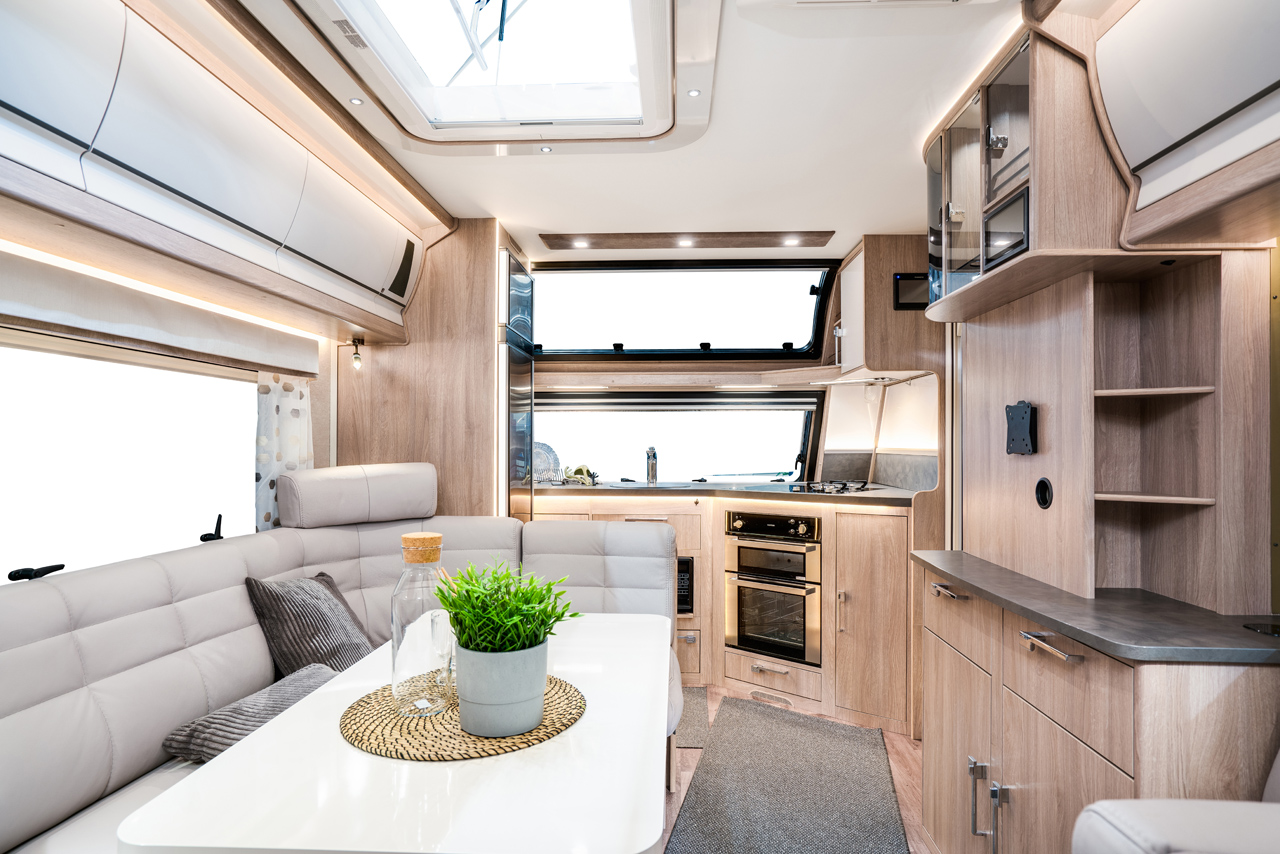

I780TDLFK - 3- Kabe
I780TDLFK - 4- Kabe
I780TDLFK - 5- Kabe
I780TDLFK - 6- Kabe
I780TDLFK - 7- Kabe

KABE 360°

Technical specifications

  • Overall length940 cm
  • Overall height278 cm
  • Body length815 cm
  • Interior body length720 cm
  • Interior height196 cm
  • Interior width KS235 cm
  • Living area KS16,9 m2
  • Bed space KS – Middle211 x 117 cm
  • Rear E22 x 196 x 88 cm
  • Rear E5196 x 140/118 cm
  • A-measurement1200 cm
  • Rear E8190 x 156/118 cm
  • Rear E9196 x 140 + 2 x 196 x 60 cm
  • Wheel type195/70R15C
