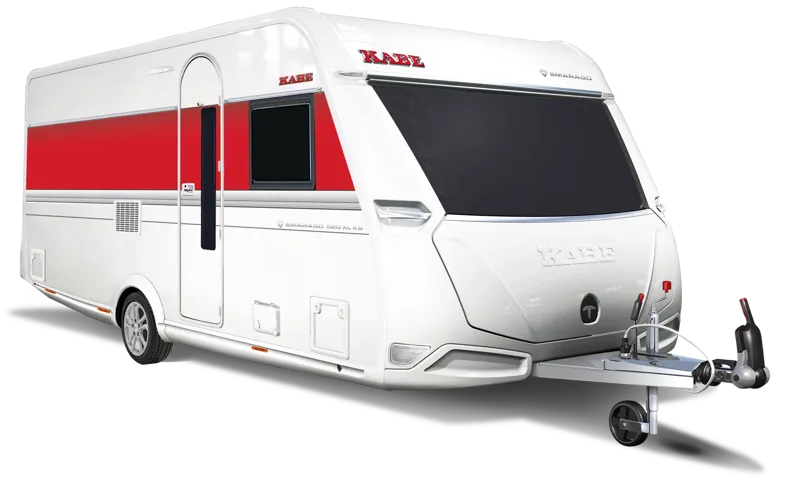

Smaragd 520 XL
Smaragd was launched in 1967 and has since been one of our most appreciated models. With its well-designed basic layout, it offers both generous space and comfort — year after year. The single-axle construction provides you with control and mobility on the road. New! The King Size floor plan features a 9 cm wider bed at the rear (the bathroom retains the same dimensions as in the standard width).

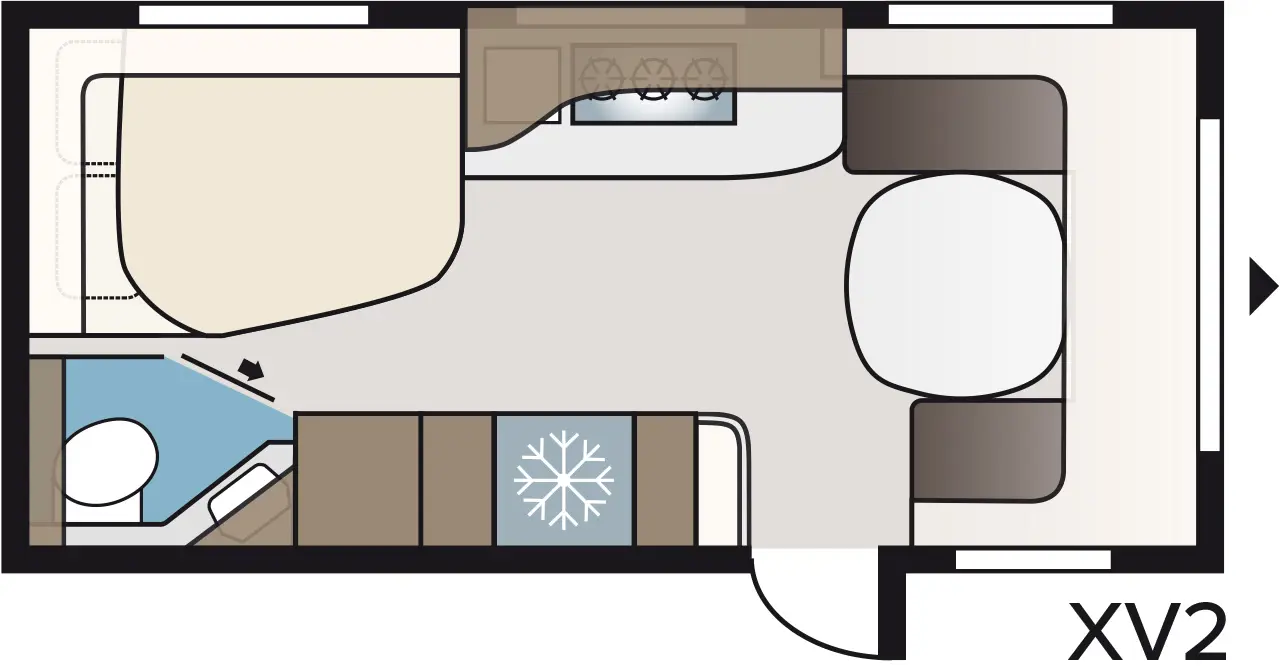

Plan
Here you can see the floor plan
XV2
2 beds
Dimensions STD width: 230 cm
Dimensions KS width: 250 cm
Toilet area with shower (shower cabin in DXL) located in the far back corner.
Standard equipment
Automatic water system / water heater
Laminated Urban Style in countertop (stone imitation)
Rotatable flush toilet, permanently installed with external drainage
Shower cabin / Shower tray and hand shower / Shower curtain and rail
Aluminum bed frame
Curtains (included in certain models)
Folding main bed guard
Headboard – padded, in faux leather imitation
Spiral mattress 12 cm + mattress toppers 6 cm (not applicable to bunk beds / overhead beds)
The bottom panel in the bed drawers
Wire shelves for wardrobe
15" alloy wheel, gray
AL-KO fully galvanized steel profile chassis with self-adjusting brakes
Anti-sway friction clutch
Breathable wall covering
Custom-molded protective mat in gas bottle compartment
Ecoprim insulation (floor, roof, and walls) 36 mm
Exclusive body with integrated all-around profile
Extended drawbars
Exterior door (Seitz) with integrated insect screen and threshold heating
Integrated gas bottle compartment in ABS with lighting, wagon-width
Kitchen window
Mid-height windows with continuous insect screen and blackout curtain
Mosquito screen door
Opening front window
Parking brake with reverse automation
Plastic trim strips
Sandwich construction
Skylight 40x40
Sliding compartment with retractable bottom, external lockable hatch, and lighting
Smooth sheet metal with embossed pattern
Soft interior ceiling
Splash guard behind the wheel
Stable and moisture-proof body shell
Tire Continental
Tow hitch cover
Ventilating roof windows Mini Heki with mosquito net and blackout curtains
Window in the exterior door
12V circulation pump
Alde Compact 3030 central heating with touchscreen for clock, indoor and outdoor temperature
Automatic water-based underfloor heating system - 4 loops and shunt system (AGS II Pro)
Drying cabinet with drip tray and lockable ventilator (available in several models)
Dual temperature sensors
Heated shoe compartment
Load monitor that automatically reduces/disconnects the stove's power consumption
Optimized ventilation system
VarioVent - unique ventilation system
Ventilation hatch
12V connection with 13-pin connector, Jäger system
230V outlet window shelf
30 A Battery Charger
Battery 80 Ah
Dimmer for front ceiling light
Dimmer for light bar at the front assembly
Dimmer for mood lighting in the kitchen
Elbox: external 230V / 12V outlet, central antenna connection, 230V indicator light
Electrical panel 230V, 16A with circuit breakers
Exterior 230 V / 12 V outlet
Front compartment lighting (LED) in aluminum profile
Front speakers
Gas leak indicator
Gas stove case lighting
Indirect overhead cabinet lighting at the rear
LED lighting in all lamps
LED lighting near the refrigerator Neonflex
Light strip for windows
Lighting for ski compartment
Night lighting
Prepared for rear speakers
Radio with DAB
Reading lamps – black (1)
Residual current circuit breaker
Router
Service center with control panel
Smoke detector
TV antenna with amplifier
TV mount
USB bunk bed
Wardrobe lighting and lighting in bed drawers
40-liter water tank with external filling
Black handles
Built-in drawers
Cooktop with electric ignition
Gray water tank 32 liters (built-in and external gray water bag)
Hanging strip with two hooks
Interior gray water tank
Kitchen hood with motor, grease filter, and lighting
Lock for the sink
Optimized refrigerator ventilation
Plexiglas with lighting at the workbench
Refrigerator 230 V / 12 V / propane. Capacity 167 liters, including freezer compartment 29 liters
Refrigerator front Atlas Zeder
Single-lever mixer, in kitchen and toilet
Soft-close kitchen drawers
Workbench in Atlas Zeder with 3-burner gas stove
4 fabric collections (Tulsa, Phoenix, New Haven, Tucson)
Anti-slip backing for cushion undersides
Bar cabinet with tinted plexiglass and bottle storage (from the side) in hurts
Ceiling lamp covered in faux suede (and FK front lighting ramp)
Corner shelves at the front
Curtain mounting with kappa
Cutting board (not wall-mounted or pedestal table)
Decorative cushions
Ergonomic seat cushions
Exclusive overhead cabinet doors
Folding sofas
Gas strut for overhead cabinet
High-quality carpentry
Indirect lighting underneath upper cabinets
Interior Atlas Zeder
Matching flooring
Overhead cabinet doors front and rear Grau
Porcelain cabinet doors Atlas Zeder
Premium foam padding
Entryway wardrobe (in certain models)
External gas connection for grill located in gas bottle compartment
Lockable water tank cover
Unified locking system, one key for all locks
Waste bin with source separation
Look around the
Technical Specification
- Total length 742 cm
- Overall height 278 cm
- Total width std. 230 cm
- Total width KS 250 cm
- Body length 617 cm
- Body length inside 522 cm
- Height inside 196 cm
- Width inside std. 215 cm
- Width inside KS 235 cm
- Sleeping place std. –forward 205 x 166/127 cm
- Sleeping area KS – front 225 x 166/127 cm
- A-Dimensions 989 cm
- Sleeping place Flexline XV2 190 x 129/102 cm
- Sleeping place Flexline XV2 KS 190 x 149/127 cm
- Living space Std 11,2 m²
- Living space KS 12.3 m²
