Onyx 630 TDL

Onyx 630 TDL

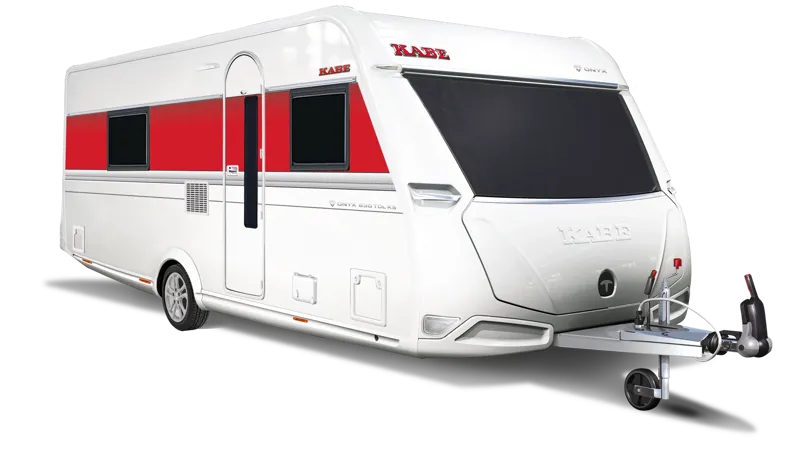

Onyx 630 TDL features a separate sleeping area and is available in two floor plans: choose between two single beds or a diagonally positioned double bed. The spacious bathroom with a separate shower cabin runs along the entire rear gable of the caravan. Easy handling with a single-axle construction.

Summary
Floor plan
Upholstery
Equipment
Photos/360
Technical Specification
Onyx 630 TDL

Optional floor plans

Find the right floor plan for you below

E2 Floor plan

E2

2 beds
Bed space:: 2 x 196 x 88 cm

Toilet area with a separate shower cabin located at the very back along the entire rear end of the caravan.

Two single beds (long beds) at the rear of the caravan. Convertible seating area at the front.

E8 Floor plan

E8

2 beds
Bed space:: 199 x 156/118 cm

Toilet area with a separate shower cabin located at the very back along the entire rear end of the caravan.

Large double bed, transversely positioned at the rear of the caravan. Convertible seating area at the front.

Standard equipment

Automatic water system / water heater
Laminated Urban Style in countertop (stone imitation)
Rotatable flush toilet, permanently installed with external drainage
Shower cabin / Shower tray and hand shower / Shower curtain and rail
Aluminum bed frame
Curtains (included in certain models)
Folding main bed guard
Headboard – padded, in faux leather imitation
Spiral mattress 12 cm + mattress toppers 6 cm (not applicable to bunk beds / overhead beds)
The bottom panel in the bed drawers
Wire shelves for wardrobe
15" alloy wheel, gray
AL-KO fully galvanized steel profile chassis with self-adjusting brakes
Anti-sway friction clutch
Breathable wall covering
Custom-molded protective mat in gas bottle compartment
Ecoprim insulation (floor, roof, and walls) 36 mm
Exclusive body with integrated all-around profile
Extended drawbars
Exterior door (Seitz) with integrated insect screen and threshold heating
Integrated gas bottle compartment in ABS with lighting, wagon-width
Kitchen window
Mid-height windows with continuous insect screen and blackout curtain
Mosquito screen door
Opening front window
Parking brake with reverse automation
Plastic trim strips
Sandwich construction
Skylight 40x40
Sliding compartment with retractable bottom, external lockable hatch, and lighting
Smooth sheet metal with embossed pattern
Soft interior ceiling
Splash guard behind the wheel
Stable and moisture-proof body shell
Tire Continental
Tow hitch cover
Ventilating roof windows Mini Heki with mosquito net and blackout curtains
Window in the exterior door
12V circulation pump
Alde Compact 3030 central heating with touchscreen for clock, indoor and outdoor temperature
Automatic water-based underfloor heating system - 4 loops and shunt system (AGS II Pro)
Drying cabinet with drip tray and lockable ventilator (available in several models)
Dual temperature sensors
Heated shoe compartment
Load monitor that automatically reduces/disconnects the stove's power consumption
Optimized ventilation system
VarioVent - unique ventilation system
Ventilation hatch
12V connection with 13-pin connector, Jäger system
230V outlet window shelf
30 A Battery Charger
Battery 80 Ah
Dimmer for front ceiling light
Dimmer for light bar at the front assembly
Dimmer for mood lighting in the kitchen
Elbox: external 230V / 12V outlet, central antenna connection, 230V indicator light
Electrical panel 230V, 16A with circuit breakers
Exterior 230 V / 12 V outlet
Front compartment lighting (LED) in aluminum profile
Front speakers
Gas leak indicator
Gas stove case lighting
Indirect overhead cabinet lighting at the rear
LED lighting in all lamps
LED lighting near the refrigerator Neonflex
Light strip for windows
Lighting for ski compartment
Night lighting
Prepared for rear speakers
Radio with DAB
Reading lamps – black (1)
Residual current circuit breaker
Router
Service center with control panel
Smoke detector
TV antenna with amplifier
TV mount
USB bunk bed
Wardrobe lighting and lighting in bed drawers
40-liter water tank with external filling
Black handles
Built-in drawers
Cooktop with electric ignition
Gray water tank 32 liters (built-in and external gray water bag)
Hanging strip with two hooks
Interior gray water tank
Kitchen hood with motor, grease filter, and lighting
Lock for the sink
Optimized refrigerator ventilation
Plexiglas with lighting at the workbench
Refrigerator 230 V / 12 V / propane. Capacity 167 liters, including freezer compartment 29 liters
Refrigerator front Atlas Zeder
Single-lever mixer, in kitchen and toilet
Soft-close kitchen drawers
Workbench in Atlas Zeder with 3-burner gas stove
4 fabric collections (Tulsa, Phoenix, New Haven, Tucson)
Anti-slip backing for cushion undersides
Bar cabinet with tinted plexiglass and bottle storage (from the side) in hurts
Ceiling lamp covered in faux suede (and FK front lighting ramp)
Corner shelves at the front
Curtain mounting with kappa
Cutting board (not wall-mounted or pedestal table)
Decorative cushions
Ergonomic seat cushions
Exclusive overhead cabinet doors
Folding sofas
Gas strut for overhead cabinet
High-quality carpentry
Indirect lighting underneath upper cabinets
Interior Atlas Zeder
Matching flooring
Overhead cabinet doors front and rear Grau
Porcelain cabinet doors Atlas Zeder
Premium foam padding
Entryway wardrobe (in certain models)
External gas connection for grill located in gas bottle compartment
Lockable water tank cover
Unified locking system, one key for all locks
Waste bin with source separation

360-view

Technical Specification

  • Total length 850 cm
  • Overall height 278 cm
  • Total width KS 250 cm
  • Body length 725 cm
  • Body length inside 630 cm
  • Height inside 196 cm
  • Width inside std. 235 cm
  • Width inside KS 235 cm
  • Sleeping area KS – front 225 x 166/145 cm
  • A-Dimensions 1086 cm
  • Sleeping place Flexline E2 KS 2 x 196 x 88 cm
  • Sleeping place Flexline E8 KS 199 x 156/118 cm
  • Living space KS 14.8 m²
  • Behind E2 2 x 196 x 88 cm
  • E8 199 x 156/118 cm
