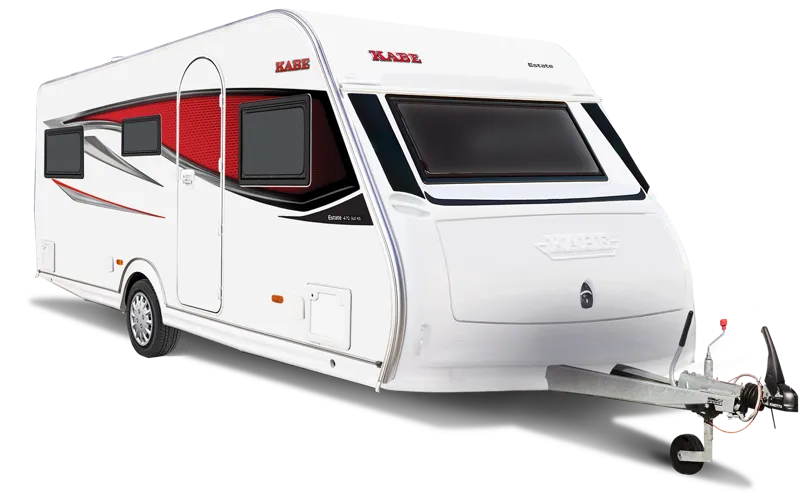

Estate 470 GLE
Estate 470 is also available in GLE configuration with two single beds. The caravan's B2 floor plan has a standard width without overhead cabinets. Grand Lit is offered as an option. The kitchen features a narrow refrigerator, and the bathroom has a side-mounted toilet. Compressor refrigerators are available as an option. The model has a single axle and is easy to handle.

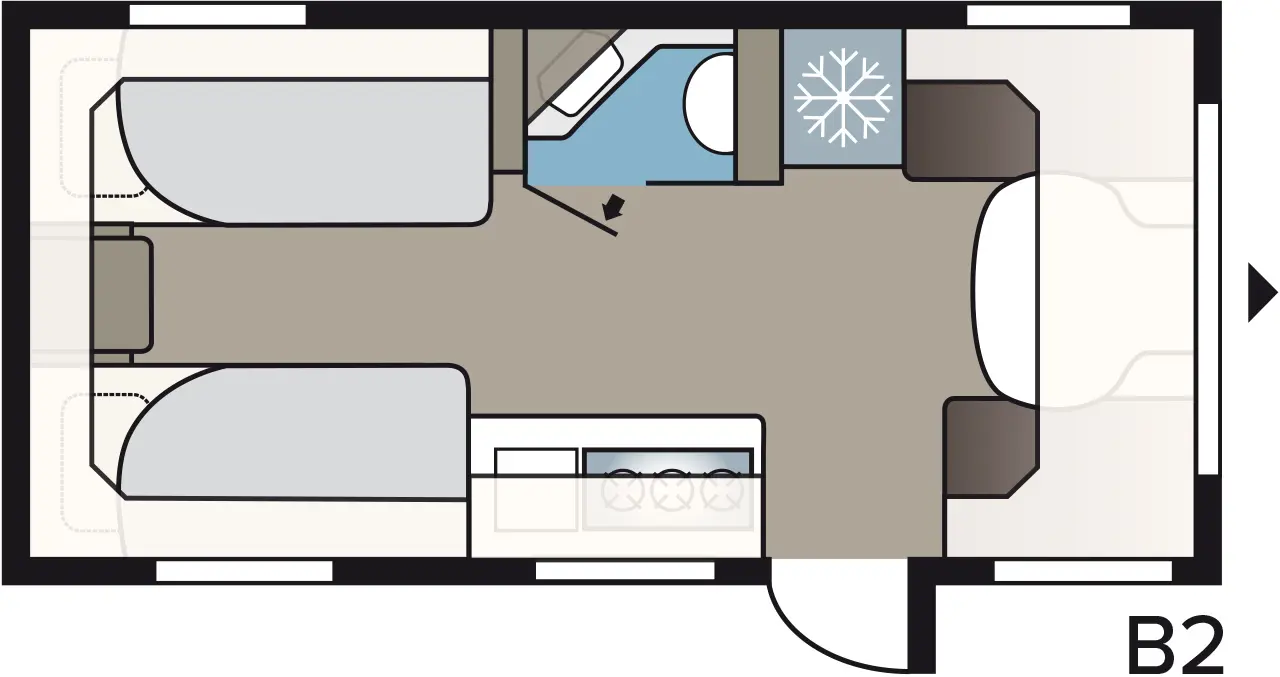

Plan
Here you can see the floor plan
GLE
2 beds
Dimensions STD width: 230 cm
Toilet area with shower located along the side of the caravan in the middle of the vehicle.
Standard equipment
Automatic water system / water heater
Laminated Urban Style in countertop (stone imitation)
Rotatable flush toilet, permanently installed with external drainage
Shower cabin / Shower tray and hand shower / Shower curtain and rail
Curtains (included in certain models)
Headboard – padded, in faux leather imitation
Spiral mattress 12 cm + mattress toppers 3 cm (not applicable to bunk beds / upper beds)
The bottom panel in the bed drawers
Wooden bed frame with edge profile
14" steel wheel
Anti-sway friction clutch
Breathable wall covering
Ecoprim insulation (floor, roof, and walls) 36 mm
Extended drawbars
Exterior door (Seitz) with integrated insect screen and threshold heating
Integrated gas bottle compartment in ABS with lighting, wagon-width
Kitchen window
Knott chassis with self-adjusting brakes
Mid-height windows with continuous insect screen and blackout curtain
Mosquito screen door
Parking brake with reverse automation
Plastic trim strips
Sandwich construction
Skylight 40x40
Sliding compartment with retractable bottom, external lockable hatch, and lighting
Smooth sheet metal and unique decals with a 3D look
Soft interior ceiling
Splash guard behind the wheel
Stable and moisture-proof body shell
Ventilating roof windows Mini Heki with mosquito net and blackout curtains
12V circulation pump
Alde Compact 3030 central heating with touchscreen for clock, indoor and outdoor temperature
Automatic water-based underfloor heating system - 4 loops (AGS II)
Drying cabinet with drip tray and lockable ventilator (available in several models)
Optimized ventilation system
Ventilation hatch
12V connection with 13-pin connector, Jäger system
230V outlet window shelf
30 A Battery Charger
Battery 80 Ah
Dimmer for front ceiling light
Electrical panel 230V, 16A with circuit breakers
Exterior 230 V / 12 V outlet
Front speakers
Gas leak indicator
Gas stove case lighting
Indirect overhead cabinet lighting at the rear (Estate non-dimmable)
LED lighting in all lamps
Lighting for ski compartment
Prepared for rear speakers
Radio with DAB
Reading lamps – black
Residual current circuit breaker
Router
Service center with control panel
Smoke detector
TV antenna with amplifier
TV mount
USB bunk bed
40-liter water tank with external filling
Black handles
Cooktop with electric ignition
Gray water tank 32 liters (built-in and external gray water bag)
Interior gray water tank
Kitchen hood with motor, grease filter, and lighting
Lock for the sink
Matte black refrigerator front
Optimized refrigerator ventilation
Refrigerator 230V / 12V / propane. Capacity 142 liters, freezer compartment 15 liters
Single-lever mixer, in kitchen and toilet
Soft-close kitchen drawers
Workbench in Nussbaum Ombre with 3-burner gas stove
2 weekly collections (Tulsa, Phoenix)
Anti-slip backing for cushion undersides
Ceiling lamp and lighting strips Grau with wood trim
Curtain set with light strip
Decorative cushions in the front section
Ergonomic seat cushions
Folding sofas
Gas strut for overhead cabinet
High-quality carpentry
Interior Nussbaum Ombre
Matching flooring
Overhead cabinet doors front and rear Grau with wood trim strip and black border
Porcelain cabinet doors in Gray with wood trim and black border
Entryway wardrobe (in certain models)
Lockable water tank cover
Unified locking system, one key for all locks
Waste bin with source separation
Technical Specification
- Total length 687 cm
- Overall height 278 cm
- Total width std. 230 cm
- Body length 558 cm
- Body length inside 473 cm
- Height inside 196 cm
- Width inside std. 215 cm
- Sleeping place std. –forward 205 x 156/124 cm
- A-Dimensions 940 cm
- Sleeping place Flexline B2 196 x 78 + 186 x 78 cm
- Sleeping place Flexline B2 KS 196 x 78 + 186 x 78 cm
- Living space Std 10,2 m²
