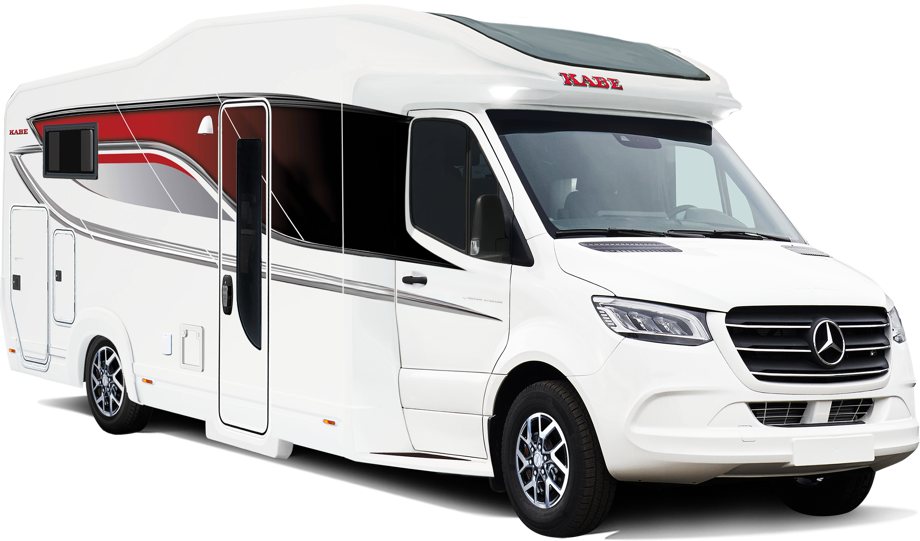

Novum 750 LGB

Novum 750 LGB

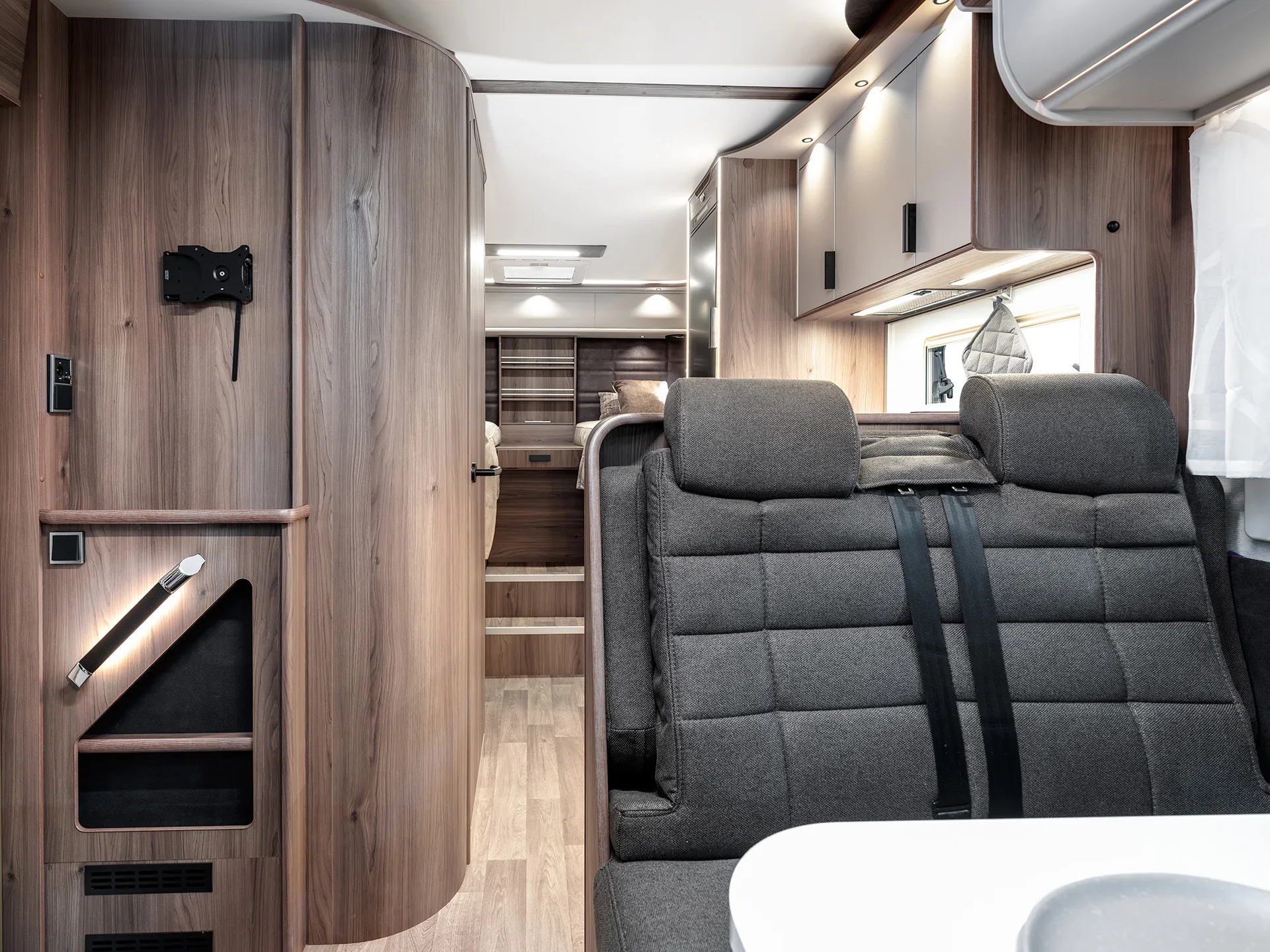

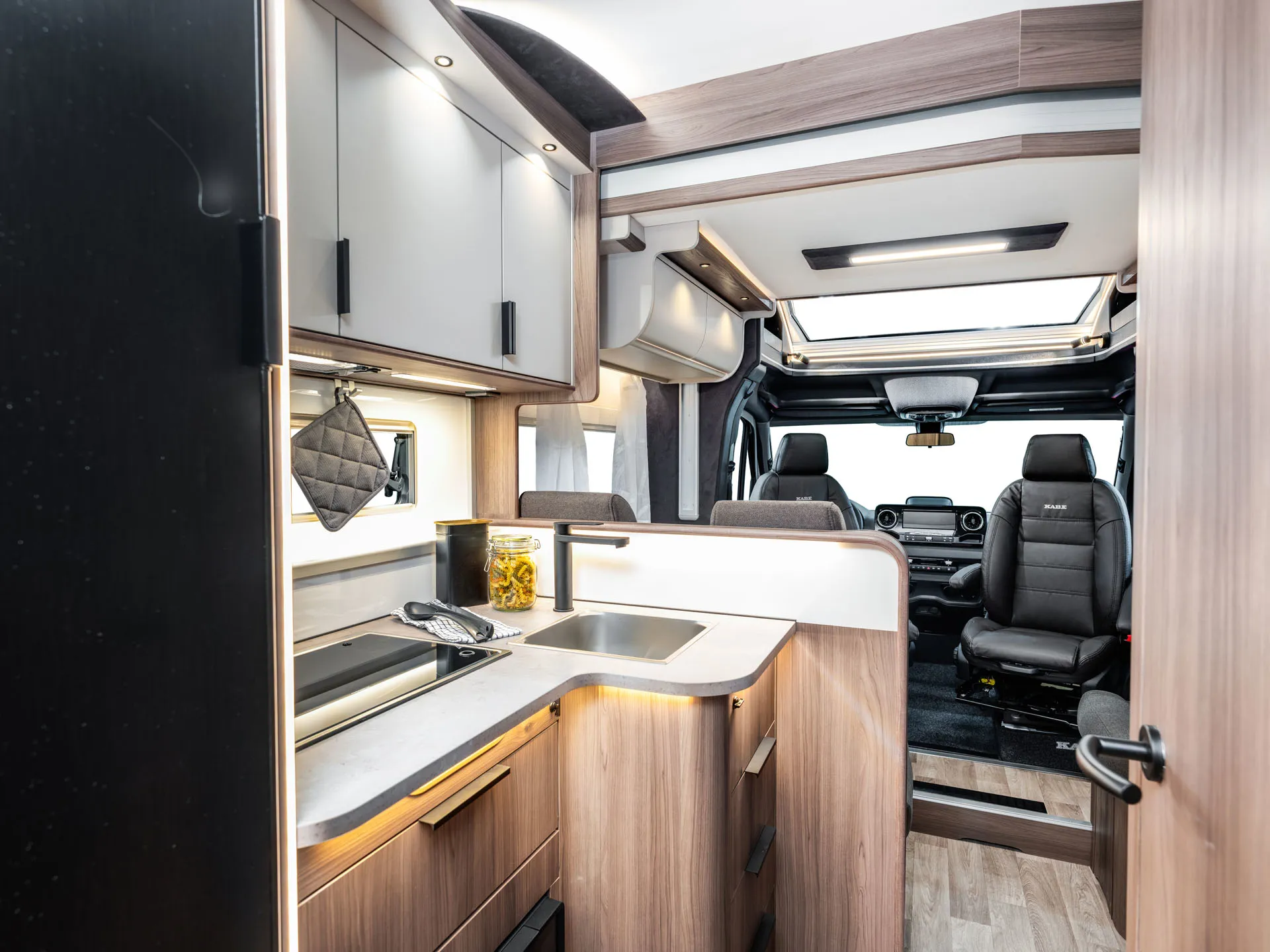

In the Novum x750 LGB, you will find plenty of storage space beneath the two raised long beds at the rear. The large cargo area is easily accessible through the exterior hatch. A bathroom with a shower is located in the middle of the vehicle, and a well-designed L-shaped kitchen is on the opposite side. As an option, you can choose a drop-down roof bed above the dinette.

Summary
Layouts
Clothing
Equipment
Technical Specification
Novum 750 LGB

Plan

Here you can see the floor plan

LGB

2 beds
Dimensions STD width: 2390 cm

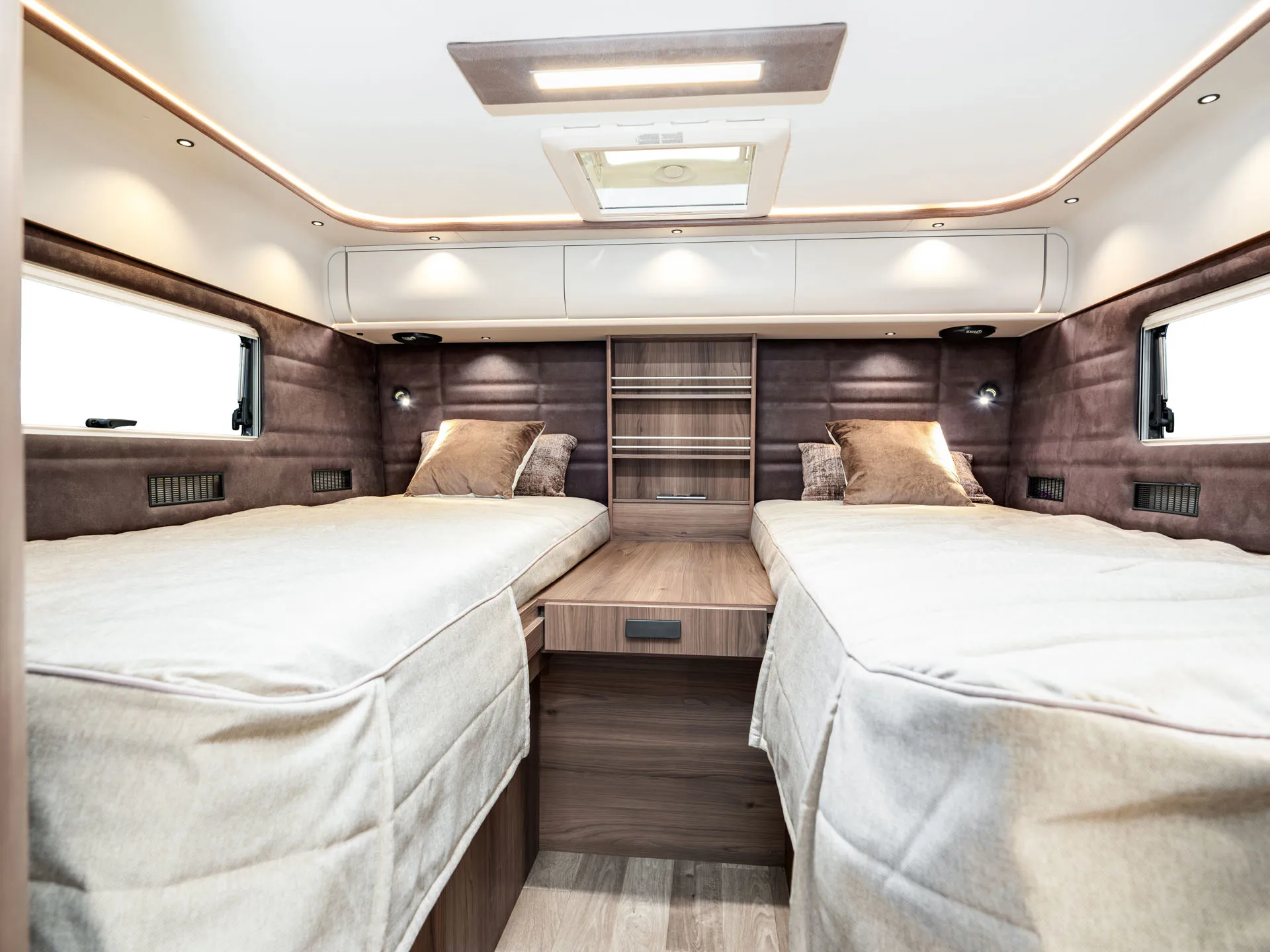

Two single beds (long beds) at the rear of the vehicle, with a toilet and shower located along one side of the vehicle in the middle.

Standard equipment

Gas leak indicator
Isofix
Motorhome assistance
Residual current circuit breaker
Smoke detector
Cargo area lighting
Dimmer for front ceiling light
Exterior 230 V / 12 V / TV outlet / central antenna input
Indirect lighting at overhead cabinets
IP radio via KABE Smart D 2.0
LED lighting
MBUX (including rearview camera)
Mounting bracket for front TV
Night lighting
Rear speakers
TV antenna with amplifier
USB outlet in the sleeping area
100 Ah lithium battery
30 A Battery Charger
KABE Smart D 2.0 service center with touch panel that controls all functions
12V circulation pumps
ALDE Compact 3030 central heating diesel
Automatic Floor Heating System AGS II
Convectors at the entrance to the door
Electric heater 230V, 3 kW, 3-stage
Thermal curtain at the bottom of the caravan
Water heater
Winterized water system
ABS anti-lock braking system
Aluminium exterior walls and roof – decals with a 3D feel
Anti-lock braking system
Attention assist
Buttons on the steering wheel
Chassis: AL-KO 3500 kg
Cruise control
Cup holder

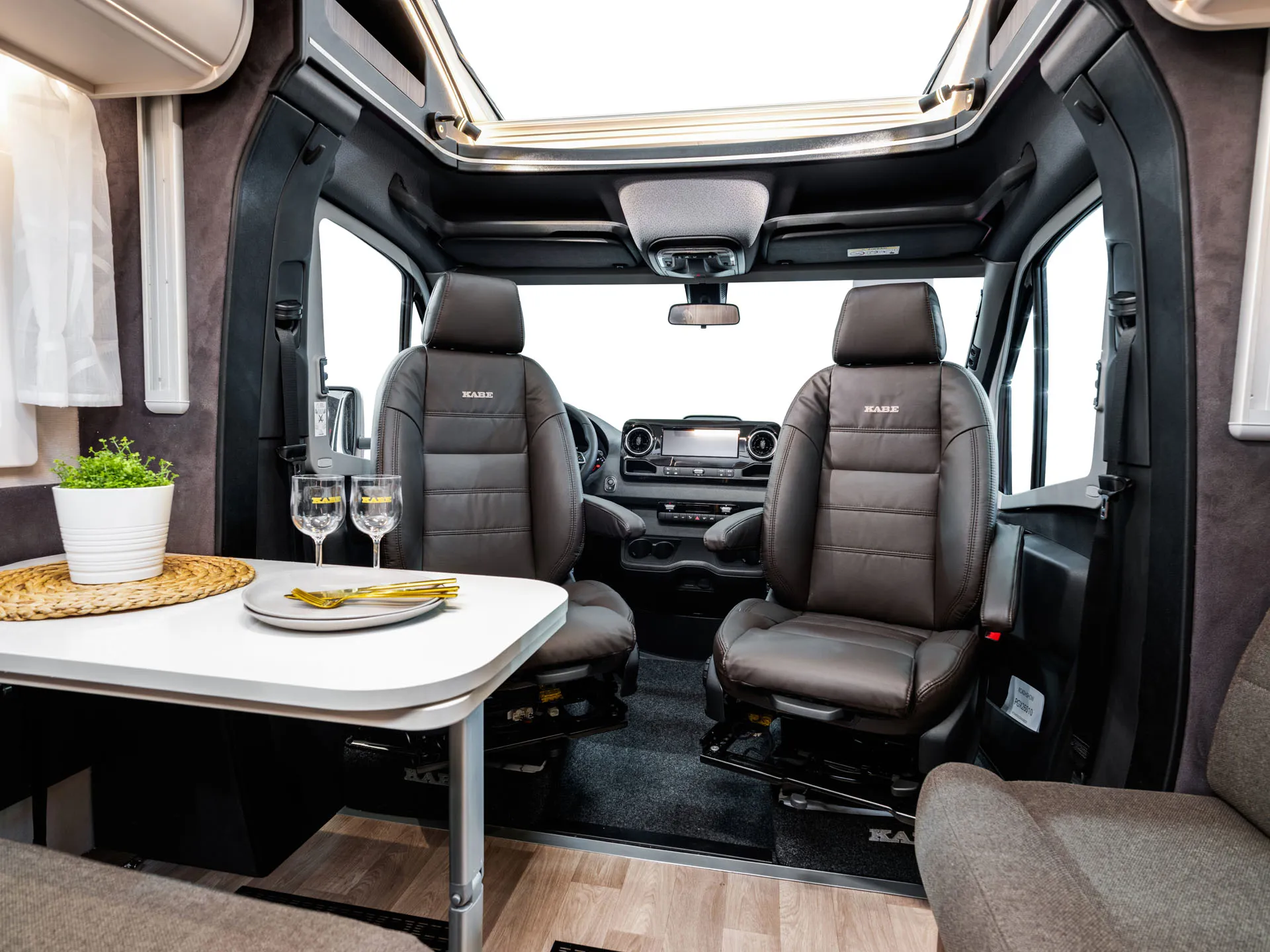

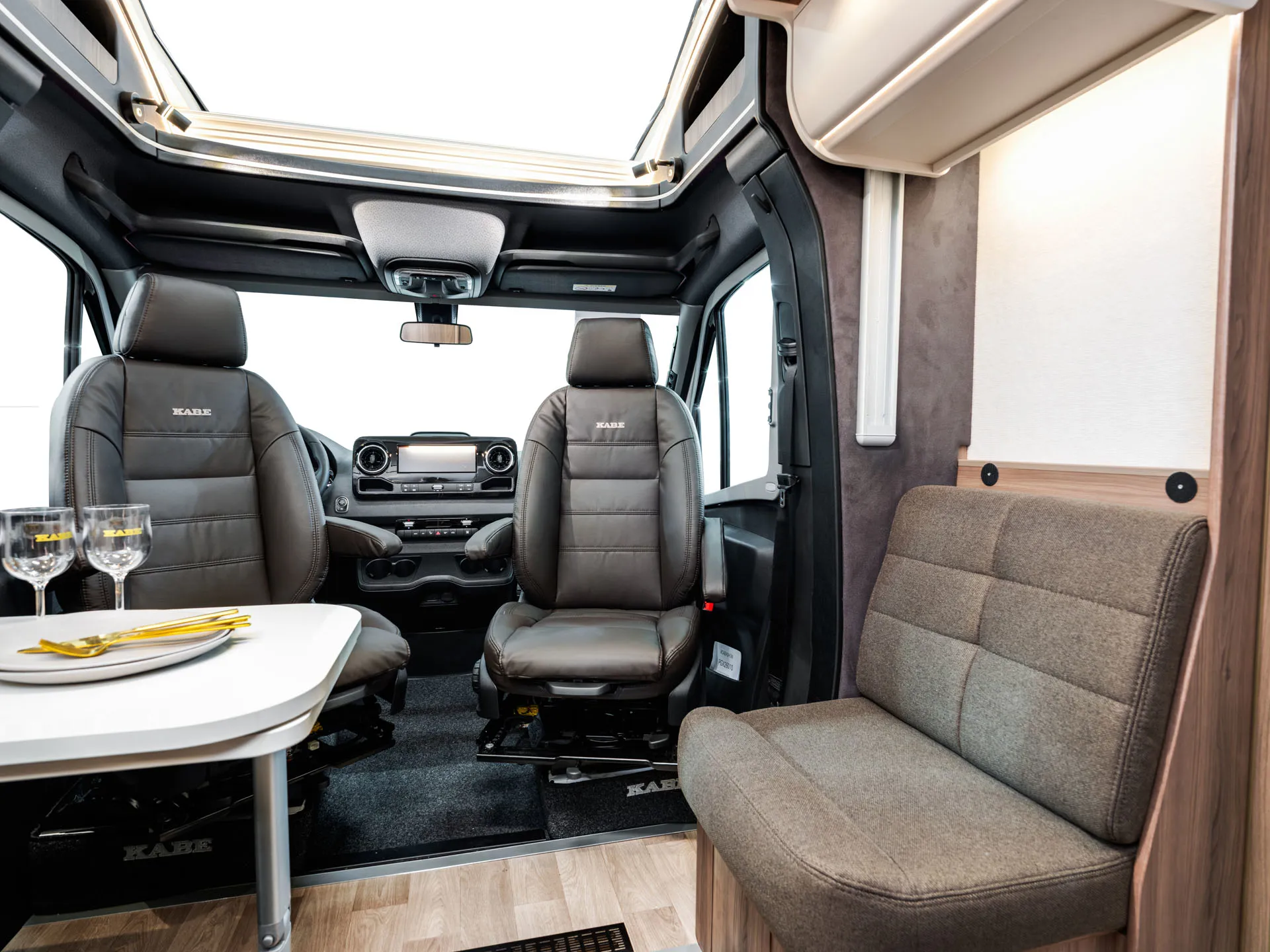

Driver and passenger seats with dual armrests
Driver and passenger seats with height adjustment
Driver and passenger seats with swiveling base
Driver's seat airbag
Electric parking brake
Electric side mirrors (adjustable and heated)
Electric window lifts
Engine: Mercedes-Benz 150 hp (FWD)
ESP/ASR anti-slip and traction control system
Extended arm side mirrors
Fatigue warning system
Fuel tank (diesel) 65 liters
Generator 220A
Heavy Duty Motor
Lane centering – Lane departure warning
Mercedes-Benz ServiceCare Complete
Particle filter
Passenger seat airbag
Protection for seat underlays
Rain sensor
Reinforced tires
Side wind assistent
Tempmatic component
Travel light assistant
Wheel rims
Wheelbase 4400 mm
Aluminum bed frame
Anti-slip backing for cushion undersides
Atlas Zeder interior
Breathable wall covering
Built-in kitchen drawers
Cashmere Overhead Cabinet Doors
Choose from 4 fabric upholstery options
Continuous roller blind and insect screen on all operable windows
Convertible sofa
Cooktop with electric ignition
Curtains
Darkening curtains (also window coverings)
Driver and passenger seats with KABE's own fixed upholstery
Electric draining of fresh water tank (also manual operation)
Electric waste water tank drainage (also manual operation)
Ergonomically designed seat cushions in Premium Foam
Exclusive overhead cabinet doors
Folding head guard
Fresh water tank, 20/130 liters
Gas strut for overhead cabinet
Handle inside the door
Hanging strip with two hooks in the kitchen
Headboard – padded, faux leather imitation with lighting
Heated grey water tank, 90 liters
High-quality carpentry
Interior with optimal air circulation
Kitchen hood with motor and grease filter
Light-colored floor
Lighting strips for overhead cabinets, entryway, and sleeping area
Lighting under the kitchen worktop
Optimized refrigerator ventilation
Optimized ventilation system
Partition door wide – Hartal Evolution
Plexiglass over workbench
Porcelain cabinet doors Cashmere

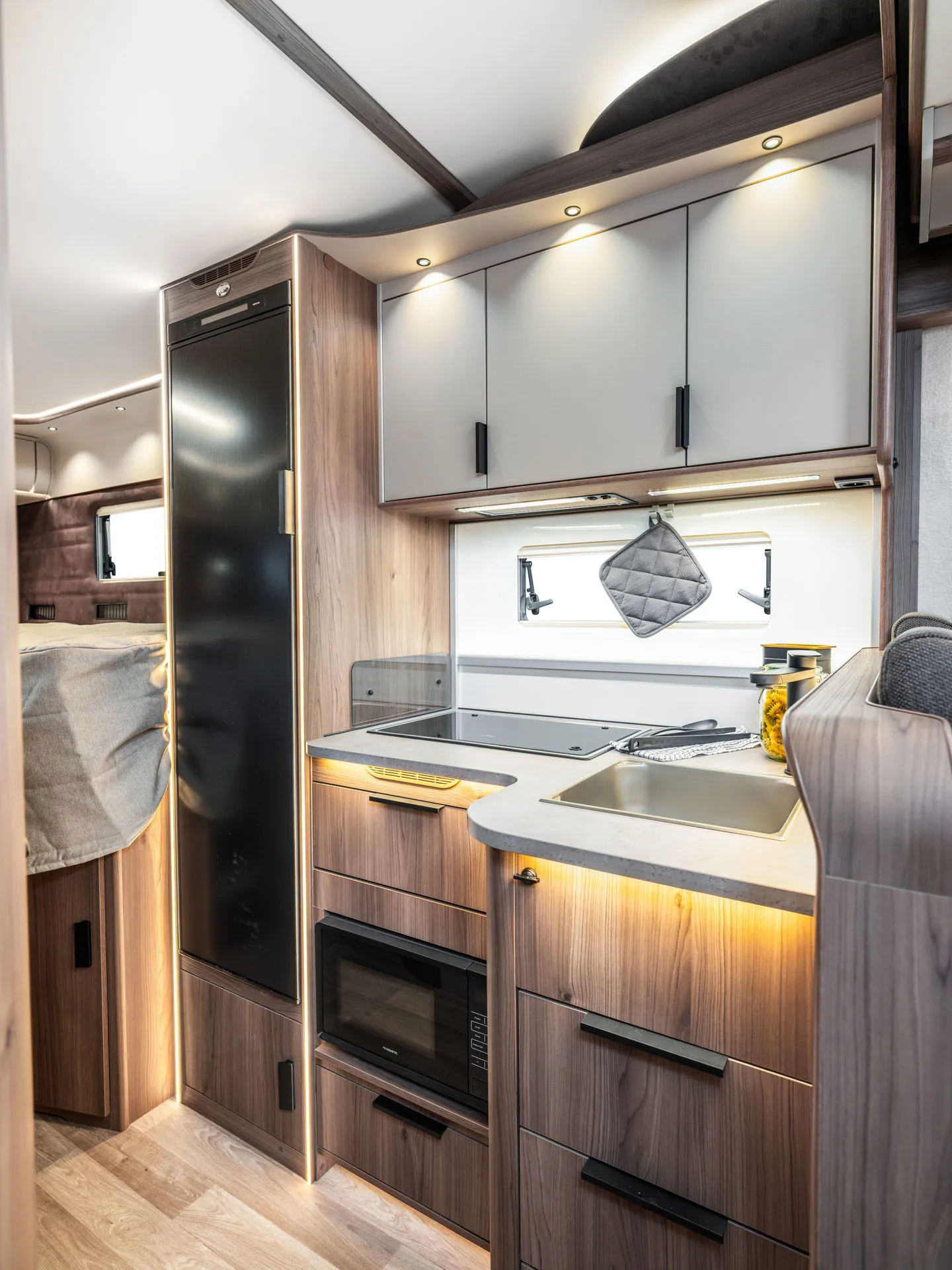

Refrigerator with freezer compartment – Thetford, narrow (142 liters)
Rotatable cassette toilet, permanently installed with external drainage
Shoe cabinet
Shower with shower wall panels or alternatively, shower in a separate shower cabin
Side garden setup with light strip
Single-lever mixer in kitchen and toilet
Soft-close kitchen drawers
Soundproof, soft interior ceiling
Spiral mattress and thinner mattress topper

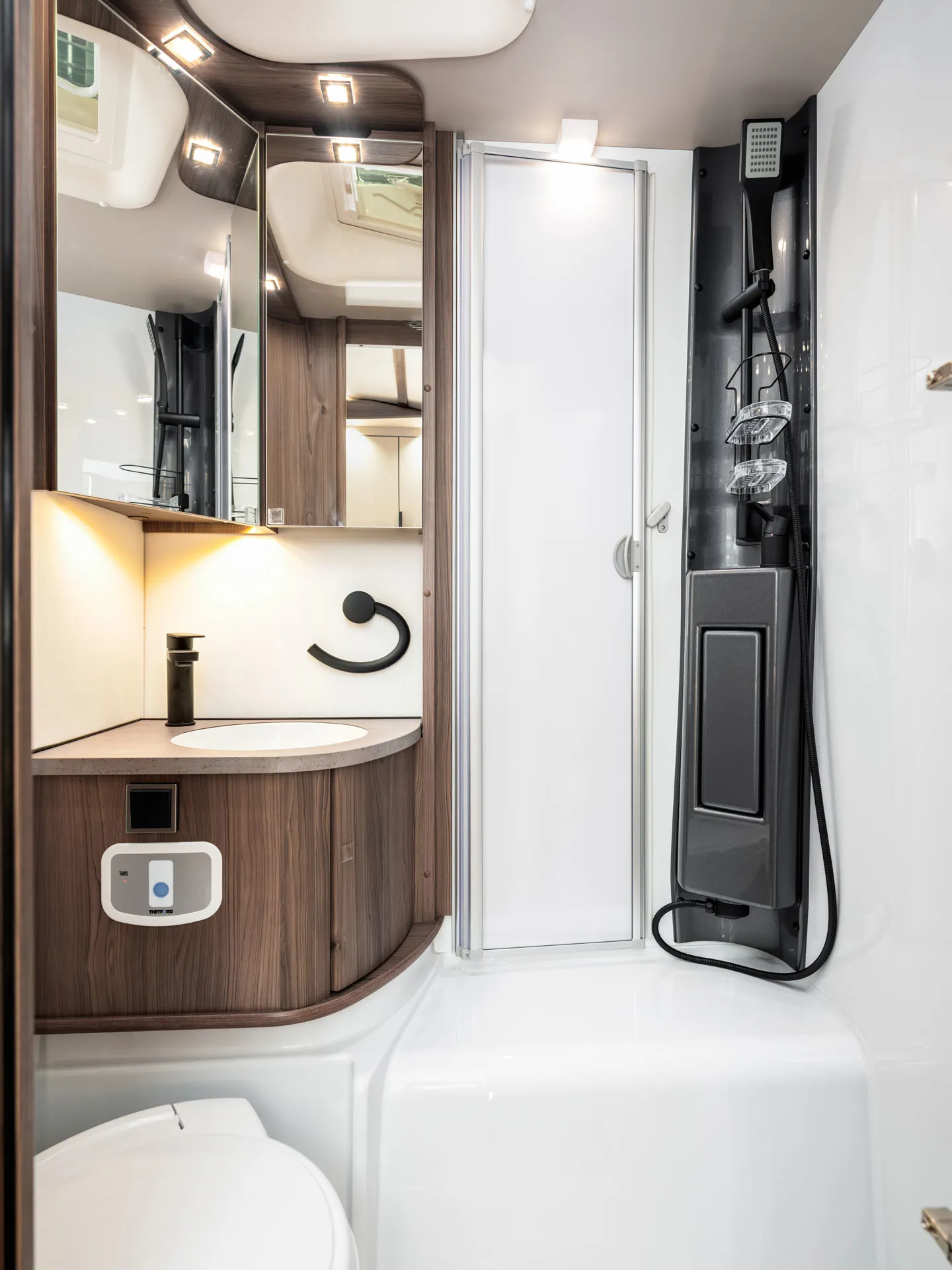

Toilet room with washbasin, shower tray, cabinet, and countertop in Light Concrete laminate
Toilet water trap
Ventilated roof window Mini Heki with mosquito net and blackout curtain
Waste bin with source separation
Wire baskets in wardrobe
Workbench with 2-burner gas stove
12V / 230V outlet garage
Ecoprim insulation in walls, floors,, and ceilings
Kitchen window
Mid-rail double window – S4 black
Mosquito screen door
Plastic trim strips
Remote-controlled central locking, including the living area door
Sandwich construction
Skyview
Stable and moisture-proof body shell

Technical Specification

  • Interior length, living area 4680 mm
  • Total length 7445 mm
  • Overall height 2905 mm
  • Total width std. 2390 mm
  • Height inside 1960 mm
  • Width inside std. 2238 mm
  • Sleeping places incl. dinette 2 -­ 4
  • Driver + number of passengers 1 + 3
  • Sleeping area in the back 2 x 1960 x 780 mm
  • Sleeping space dinette 2150 x 950 / 550 mm

Optional Package Novum

Prime-Comfort

Advanced, Design ...

The comprehensive Prime-Comfort package includes the Advanced and Design packages, as well as an additional twenty or so features...

... and much more!

... 170 hp engine, Royal exterior, Built-in oven located in the workbench, Automatic floor heating system – AGS II Pro, 150 Ah lithium battery... And much more!
