Imperial 880 TDL FK

Imperial 880 TDL FK

880 TDL FK is designed for those who prioritize cooking and a spacious kitchen. The kitchen is positioned along the entire width of the caravan at the front, featuring a large panoramic window that provides light and a sense of space. Four bed options are available, along with a large bathroom with a shower at the rear. Tandem axle is standard in our larger models, offering both increased driving stability and higher load capacity.

Summary
Floor plan
Upholstery
Equipment
Photos/360
Technical Specification
Imperial 880 TDL FK

Optional floor plans

Find the right floor plan for you below

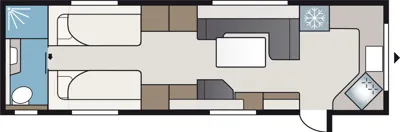

E2 Floor plan

E2

2 beds
Bed space:: 2 x 196 x 88 cm

Toilet area with a separate shower cabin located at the very back along the entire rear end of the caravan.

Two single beds (long beds) at the rear of the caravan. Convertible seating area at the front.

E5 Floor plan

E5

2 beds
Bed space:: 196 x 140/118 cm

Toilet area with a separate shower cabin located at the very back along the entire rear end of the caravan.

Large double bed, located at the rear right of the caravan. Convertible seating area at the front.

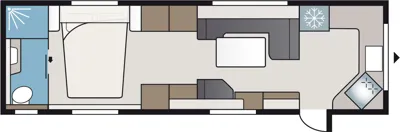

E8 Floor plan

E8

2 beds
Bed space:: 199 x 156/118 cm

Toilet area with a separate shower cabin located at the very back along the entire rear end of the caravan.

Large double bed, transversely positioned at the rear of the caravan. Convertible seating area at the front.

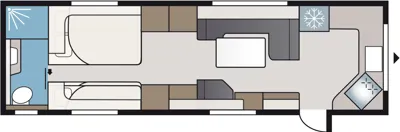

E9 Floor plan

E9

4 beds
Bed space:: 196 x 140 + 2 x 196 x 60 cm

Toilet area with a separate shower cabin located at the very back along the entire rear end of the caravan.

Large double bed at the rear right of the caravan. Also, a bunk bed on the left. Convertible seating area at the front.

Standard equipment

Automatic water system / water heater
Connection for outdoor shower / hot and cold water
Laminated Light Concrete in a countertop (light concrete look)
Rotatable flush toilet with ceramic bowl, permanently installed with external flushing
Shower cabin / Shower tray and hand shower / Shower curtain and rail
Towel radiator (some models with timer)
Aluminum bed frame
Curtains (included in certain models)
Folding electric main bed rail (not E9 bed)
Headboard – padded, in faux leather imitation
Spiral mattress 12 cm + mattress toppers 6 cm (not applicable to bunk beds / overhead beds)
The bottom panel in the bed drawers
Wire shelves for wardrobe
AL-KO fully galvanized steel profile chassis with self-adjusting brakes
Anti-sway friction clutch
Breathable wall covering
Custom-molded protective mat in gas bottle compartment
Decals on the air intakes at the bottom of the front
Ecoprim insulation (floor, roof, and walls) 36 mm
Electronic stability system, ATC (Anti-Slip System)
Exclusive body with integrated all-around profile
Extended drawbars
Exterior door (Seitz) with window, integrated insect screen, and threshold heating
Integrated gas bottle compartment in ABS with lighting, wagon-width
Kitchen window
Luggage hatch (not B8, B10)
Mid-height windows with continuous insect screen and blackout curtain
Mosquito screen door
Opening front window
Parking brake with reverse automation
Plastic trim strips
Sandwich construction
Skylight 40x40
Skylight Heki II with lighting strip
Sliding compartment with retractable bottom, external lockable hatch, and lighting
Smooth sheet metal and unique decals with a 3D look
Soft interior ceiling
Splash guard behind the wheel
Stable and moisture-proof body shell
Tire Continental
Tow hitch cover
Ventilating roof windows Mini Heki with mosquito net and blackout curtains
Window in the exterior door
12V circulation pump
Alde Compact 3030 central heating with touchscreen for clock, indoor and outdoor temperature
ALDE zone heating
Automatic water-based underfloor heating system - 4 loops and shunt system (AGS II Pro)
Drying cabinet with drip tray and lockable ventilator (available in several models)
Dual temperature sensors
Heated shoe compartment
Living area air conditioner – Fresh Jet FJX7 2600
Load monitor that automatically reduces/disconnects the stove's power consumption
Optimized ventilation system
VarioVent - unique ventilation system
Ventilation hatch
12V connection with 13-pin connector, Jäger system
230V outlet window shelf
Battery 80 Ah
Battery charger 25 A
Dimmer for front ceiling light
Dimmer for light bar at the front assembly
Dimmer for mood lighting in the kitchen
Elbox with external 230V / 12V outlet, central antenna connection, 230V indicator light, lighting with switch
Electrical panel 230V, 16A with circuit breakers
Exterior 230 V / 12 V outlet
Gas leak indicator
Gas stove case lighting
Indirect overhead cabinet lighting at the rear
KABE Premium Sound System
LED lighting in all lamps
LED lighting near the refrigerator Neonflex
Light strip for windows
Lighting for ski compartment
Media center with IP radio included in Smart D 2.0
Night lighting
Reading lamps – black chrome
Residual current circuit breaker
Router
Service center with control panel
Smart D electrical system
Smart Level (Propane level sensor, Tire pressure sensor, Level indicator)
Smoke detector
Speakers front and rear
TV mount
USB bunk bed
Wardrobe lighting and lighting in bed drawers
Wireless charging pad
40-liter water tank with external filling
Black chrome handles
Built-in drawers
Cooktop with electric ignition
Gray water tank 32 liters (built-in and external gray water bag)
Hanging strip with two hooks
Interior gray water tank
KABE AutoDrain (automatic water system drainage)
Kitchen hood with motor, grease filter, and lighting
Lock for the sink
Microwave oven
Optimized refrigerator ventilation
Plexiglas with lighting at the workbench
Refrigerator 230 V / 12 V / propane. Capacity 167 liters, including freezer compartment 29 liters
Refrigerator front blank black metallic
Single-lever mixer, in kitchen and toilet
Soft-close kitchen drawers
Workbench in Atlas Zeder with hybrid stove gas-under-glass (induction cooktop and two gas burners) and built-in oven
2 leather collections (Cornwall, Somerset)
4 fabric collections (Tulsa, Phoenix, New Haven, Tucson)
Anti-slip backing for cushion undersides
Bar cabinet with tinted plexiglass and bottle storage (from the side) in hurts
Ceiling lamp covered in faux suede (and FK front lighting ramp)
Corner shelves at the front
Curtain mounting with kappa
Cutting board (not wall-mounted or pedestal table)
Decorative cushions
Ergonomic seat cushions
Exclusive overhead cabinet doors
Folding sofas
Gas strut for overhead cabinet
Headrest – height-adjustable and foldable, with lateral adjustment
High-quality carpentry
Indirect lighting underneath upper cabinets
Interior Atlas Zeder
Matching flooring
Premium foam padding
Sabbia High Gloss Porcelain Cabinet Doors
Slide-out sofa
Upper cabinet doors front and rear Cashmere
Central vacuum system
Entryway wardrobe (in certain models)
External gas connection for grill located in gas bottle compartment
Lockable water tank cover
Unified locking system, one key for all locks
Waste bin with source separation

360-view

Technical Specification

  • Total length 1040 cm
  • Overall height 278 cm
  • Total width KS 250 cm
  • Body length 915 cm
  • Body length inside 820 cm
  • Height inside 196 cm
  • Width inside KS 235 cm
  • A-Dimensions 1285 cm
  • Sleeping place Flexline E2 KS 2 x 196 x 88 cm
  • Sleeping place Flexline E5 KS 196 x 140/118 cm
  • Sleeping place Flexline E8 KS 199 x 156/118 cm
  • Sleeping place Flexline E9 KS 196 x 140 + 2 x 196 x 60 cm
  • Sleeping area seating area KS 211 x 117 cm
  • Living space KS 19.3 m²
